Product data sheet

ECLFRCTPMPCLK

ECLFRCTPMPCLK_5600K_MIN ZOOM_HB

Prolights

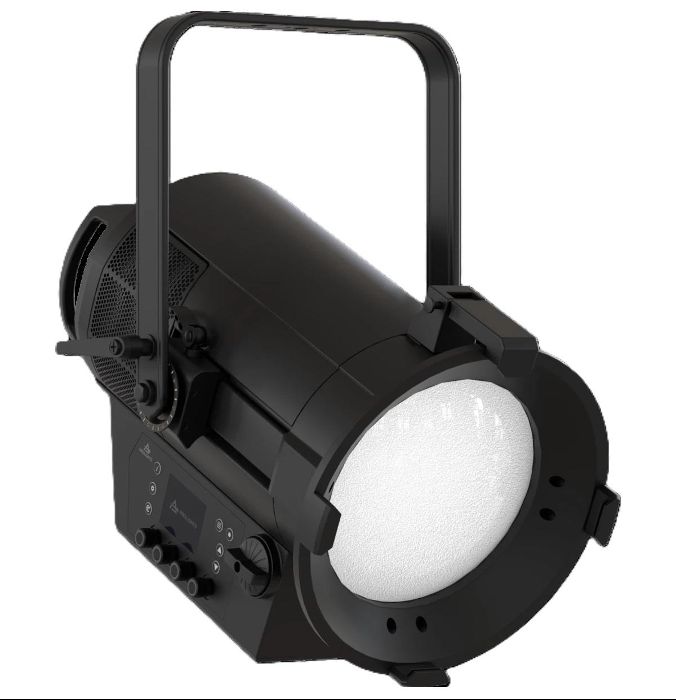

The new PC lenses from PROLIGHTS for the EclFresnel CT+ series are distinguished by their ability to optimize light intensity management and focus, ensuring uniform and well-directed illumination. These lenses allow for easy conversion of the EclFresnel CT+ M projectors from Fresnel to PC lens configurations, significantly broadening the range of applications—from theater productions to television studios—where precise control of light intensity and beam is essential. The kit is composed of the 200mm-8" PC lens, the ring and the front adapter. The front adapter is compatible with the accessories (barn doors and filter frames) of the ECLFRCTPL series (250mm-10").

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 256.5 W 4303 lm 17 lm/W 5648 K 94
ECLFRCTPMPCLK

ECLFRCTPMPCLK

Light output 1

1 x LED

Mounting mode

Ceiling mounted, Standing / Bollard

Shape and measurements

Length: 1000 mm

Width: 1000 mm

Height: 1000 mm

Adjustability

Tiltable, Free

Electric

System power: 256.5 W

Controller: DMX

Colour adjustable

Appliance Class: I

Protection

IP: 20

IK: 08

Surface temperature: 70°C

Designation labels: CE

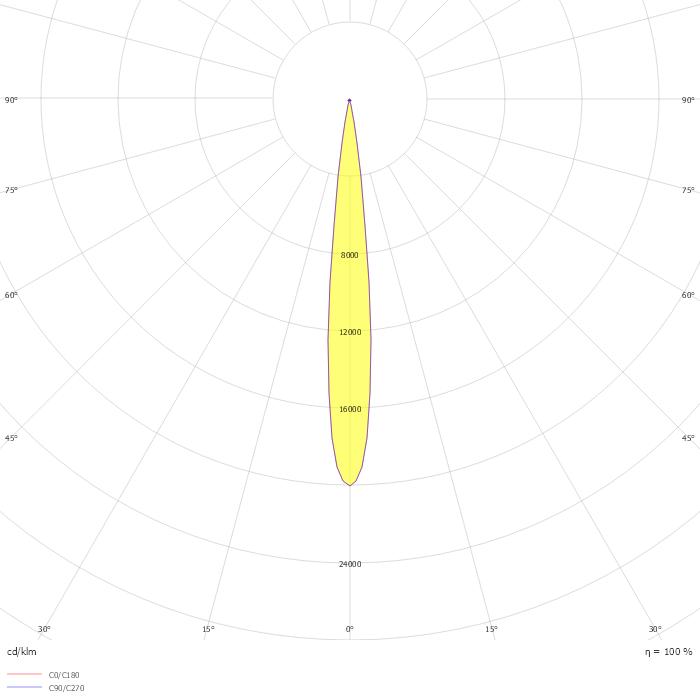

Photometric data

ZIP file

Datasheet

PDF file
