Product data sheet

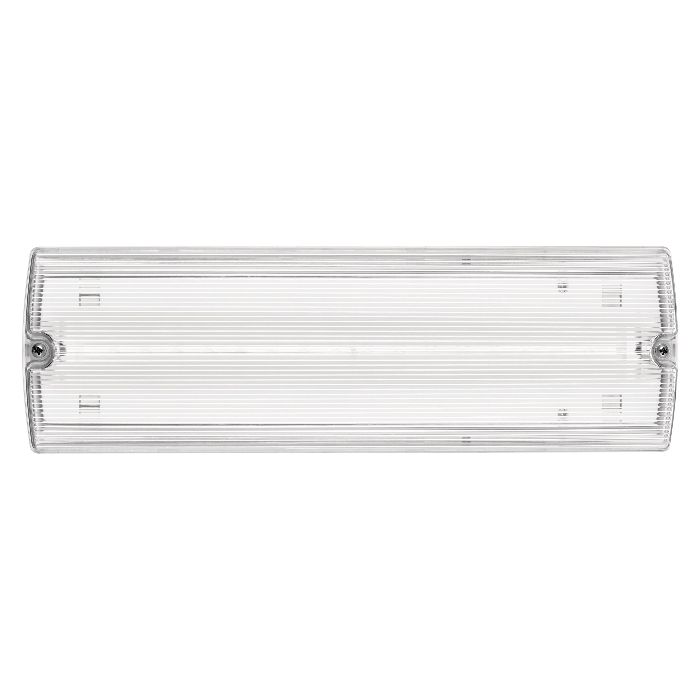

LED Emergency Bulkhead 3W 3h IP65

ZN1110+ZN1112

EMOS

light color - cool white body color - white frequency of power voltage - 50/60 Hz IP rating - IP65 material of the diffuser - plastic (PC) body material - plastic (PC) power voltage - 220–240 V AC packaging - 1 pc, box input current - 18 mA input power - 3 W dimensions - 351 × 111 × 63 mm working temperature range - 0 °C to +40 °C luminous flux - 150 lm color temperature - 6 500 K output power in emergency mode - 3 W output voltage in emergency mode - 10–50 V DC, constant current protection class - II mounting type - attached warranty period - 4 years source of light - LED mechanical impact protection - IK08 power factor - >0,5 output voltage - 10–72 V DC backup time - 3 h battery charging time - ≥ 24 hours battery type - Ni-Cd battery capacity - 1 500 mAh battery warranty - 2 years type of emergency light operation - maintained/non-maintained type of emergency operation test - manual test button

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 3.1 W 153 lm 49 lm/W 6500 K 80
LED Emergency Bulkhead 3W 3h IP65

LED Emergency Bulkhead 3W 3h IP65

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 225 mm

Width: 351 mm

Height: 63 mm

Adjustability

Fixed

Electric

System power: 3.1 W

Appliance Class: II

Protection

IP: 65

IK: 08

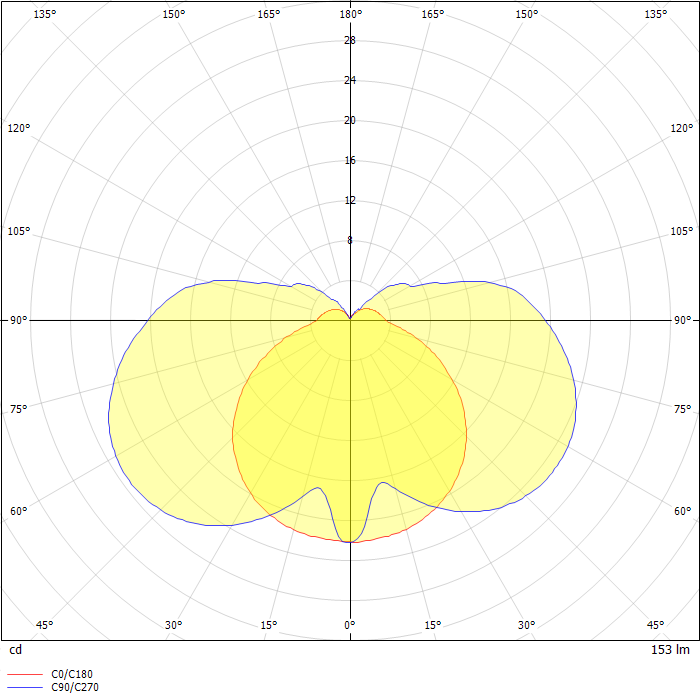

Photometric data

ZIP file
