Product data sheet

TINO SHOP LED ED 2550lm Fashion 33° white

020251.5L022.02

LUG

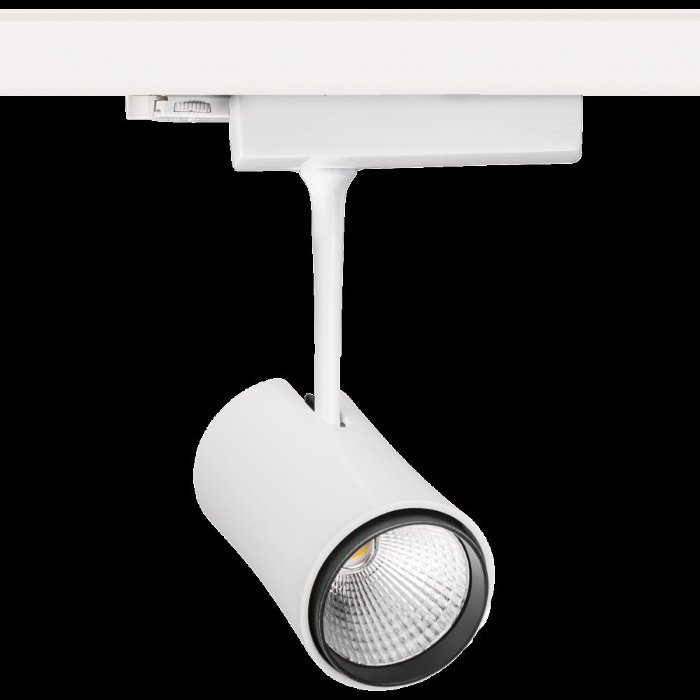

Product image 1: TINO SHOP LED ED 2550lm Fashion 33° white
Product image 1: TINO SHOP LED ED 2550lm Fashion 33° white

Product image 1: TINO SHOP LED ED 2550lm Fashion 33° white



IP
20

IK
03

The luminaire dedicated for commercial space lighting (HI-CRI), but also, with usage of adequate LED source (FOOD technology), for product exhibition places, additional special lighting Boutiques, True Color. Mounting: in 3-phase track Body: high pressure die-cast aluminum Power: 220-240V 50/60Hz Lifetime (L80B10): 40 000 h Operating temperature range: 0˚C ... +35˚C Warranty: 5 years Application: boutiques, delicatessen, jeweler, shopping centers, supermarkets, museums

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 36 W 2550 lm 71 lm/W 3250 K 80
TINO SHOP LED ED 2550lm Fashion 33° white

TINO SHOP LED ED 2550lm Fashion 33° white

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Contact rail

Shape and measurements

Length: 240 mm

Width: 92 mm

Height: 235 mm

Adjustability

Rotatable

Design

Colour of housing: White

Electric

System power: 36 W

Appliance Class: II

Protection

IP: 20

IK: 03

Photometric data

ZIP file

Download file
