Product data sheet

HBYS L80 CL LE3

Halobay Surface LED Emergency

Dextra

Product image 1: HBYS L80 CL LE3
Product image 1: HBYS L80 CL LE3

Product image 1: HBYS L80 CL LE3



IP
20

Halobay Surface Surface mounted luminaire, spun aluminium housing, clear polycarbonate diffuser. Options: LE3 - Lithium Emergency (593 lumens output) LS3 - Lithium Selftest LA3 - Lithium Autotest S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function) H - High Frequency Dimming (Analogue 1-10v) RLS - Reacta-Link Wireless Presence

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
45.1 W 6880 lm 153 lm/W 4000 K 80
HBYS L80 CL LE3

HBYS L80 CL LE3

Light output 1 (integrated)

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
4.5 W 593 lm 132 lm/W 4000 K 80
HBYS L80 CL LE3

HBYS L80 CL LE3

Light output 2 (integrated, emergency)

Mounting mode

Ceiling mounted

Shape and measurements

Height: 63 mm

Diameter: 550 mm

Adjustability

Fixed

Electric

System power: 49.6 W

Ballast: ECG

Information regarding emergency functions

Supplementary emergency lighting

Emergency sign: N/A

Protection

IP: 20

Designation labels: CE

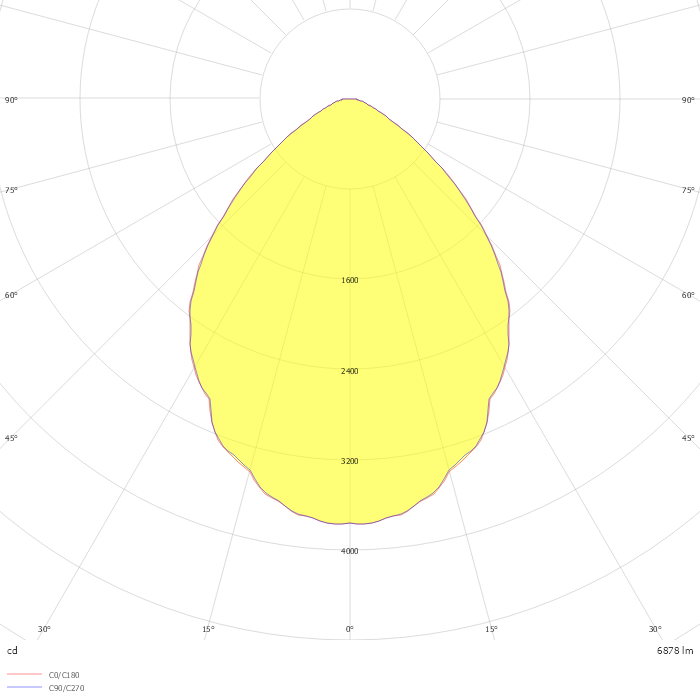

Photometric data

ZIP file

Download file
