Housing: in extruded aluminium. Diffuser: prismatic polycarbonate. Coating: epoxy polyester powder coating resistant to UV rays. Low flicker: luminaire with very low flicker: evenly distributed light for greater visual safety. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. They have a degree of protection according to the EN60529 standard. On request: - emergency wiring CLD E -07. - emergency wiring with centralized power supply CLD EC -0050. - version with pass-through wiring for continuous line modules with subcode -0072: supplied without diffusor, which should be purchased separately with acc. 6078, ideal for continuous and uninterrupted “all light” lines. - black colour version
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 30 W | 4275 lm | 142 lm/W | 3000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 1465 mm
Width: 64 mm
Height: 74 mm
Adjustability
Fixed
Design
Colour of housing: White
Electric
System power: 30 W
Appliance Class: I
Protection
IP: 40
IK: 07
Designation labels: CE

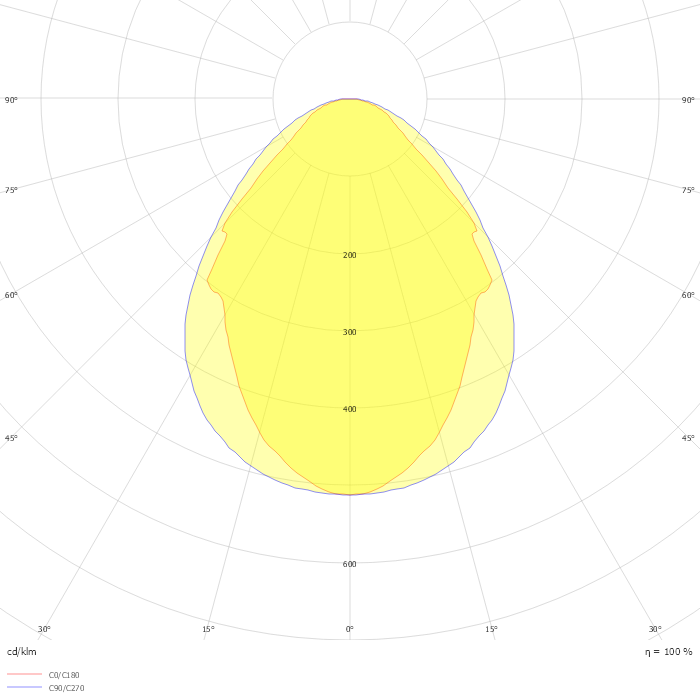

Photometric data
ZIP file
