Product data sheet

OUT-BEAM Up/Down

229665

SLV

The OUT BEAM series LED wall light, available in single-headed and double-headed versions, was designed especially as an architectural accent illumination. The LED light sources lie opposite each other and are covered by glass, they produce a narrow and a wide beam respectively and thus create the special up/down effect. Thanks to its IP44 protection class, the luminaire is suitable for outdoor use. The electrical connection of the luminaire is made directly to the 230V mains supply thanks to the built-in LED driver. The OUT BEAM series also includes wall lights for halogen lamps.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 17.5 W 701 lm 40 lm/W 3000 K 80
OUT-BEAM Up/Down

OUT-BEAM Up/Down

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Length: 158 mm

Width: 150 mm

Height: 150 mm

Weight: 1.52 kg

Adjustability

Fixed

Electric

System power: 17.5 W

Appliance Class: I

Protection

IP: 44

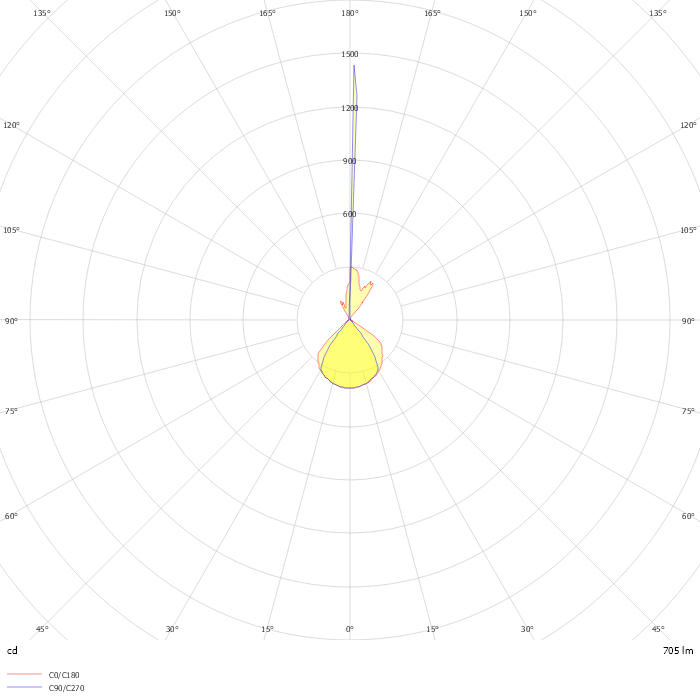

Photometric data

ZIP file
