Product data sheet

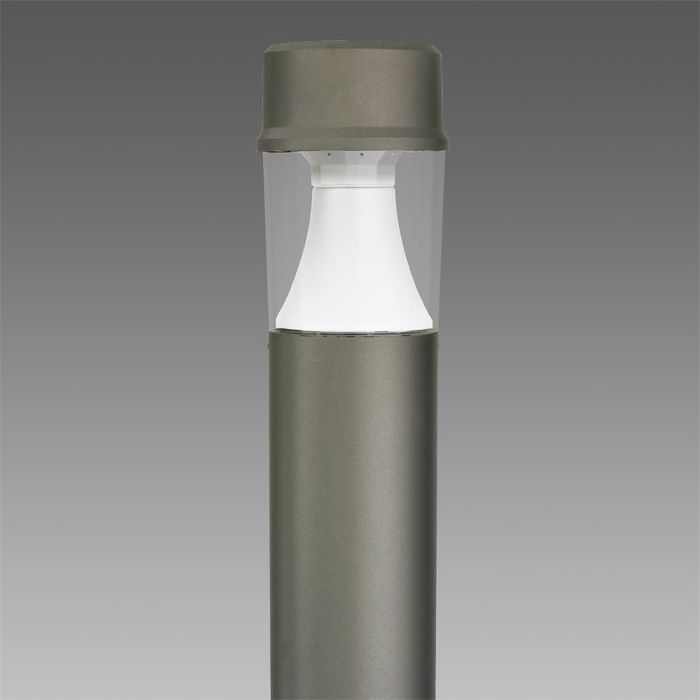

1798 Faro 4 LED - tall 4000K CRI 80 9W CLD Corten

511025-2191

Disano

Housing: in extruded aluminium, with cylindrical cross-section with a diam. of 180 mm. Base: in die-cast aluminium. Diffuser: in polycarbonate, transparent, anti-glare, shatterproof and V2 self-extinguishing, UV stablised. Coating: pre-treatment of metal surface, polyester powder coating to ensure resistance to corrosion and salt spray fogs, UV stabilised. Special coating: upon request: available with coating tested to withstand corrosion tests in agressive artificial atmospheres (UNI EN ISO 9227) or marine environments (sea front). Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Equipment: - with air circulation valve. - equipped with plug-socket for quick installation

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LTPL-P00DNS40-faro_4k 9 W 484 lm 54 lm/W 4000 K 80
1798 Faro 4 LED - tall 4000K CRI 80 9W CLD Corten

1798 Faro 4 LED - tall 4000K CRI 80 9W CLD Corten

Light output 1

1 x LTPL-P00DNS40-faro_4k

Mounting mode

Standing / Bollard

Shape and measurements

Length: 201 mm

Width: 201 mm

Height: 1104 mm

Adjustability

Fixed

Design

Material impression: Aluminum

Electric

System power: 9 W

Appliance Class: II

Protection

IP: 65

IK: 10

Designation labels: CE

Photometric data

ZIP file
