Product data sheet

LBLED High Bay

4LBLED-LD4-9-ASYMW-UNV-L835-CD2-U

Cooper Lighting

Product image 1: LBLED High Bay
Product image 1: LBLED High Bay

Product image 1: LBLED High Bay



IP
47

Die formed CRS housing painted after fabrication for added durability, High Impact optical lens protects LEDs, Available lumen packages up to 22,000 lumens, High-Performance efficacy up to 154 lm/W, Precision optics in symmetric and asymmetric distribution, Asymmetric distribution is ideal for loading docks, Lumen Maintenance – L83 @ 60,000 hours, 0-10V Dimming driver standard

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 72.9 W 8987 lm 123 lm/W 3500 K 80
LBLED High Bay

LBLED High Bay

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 1219 mm

Width: 51 mm

Height: 63 mm

Adjustability

Fixed

Electric

System power: 72.9 W

Protection

IP: 47

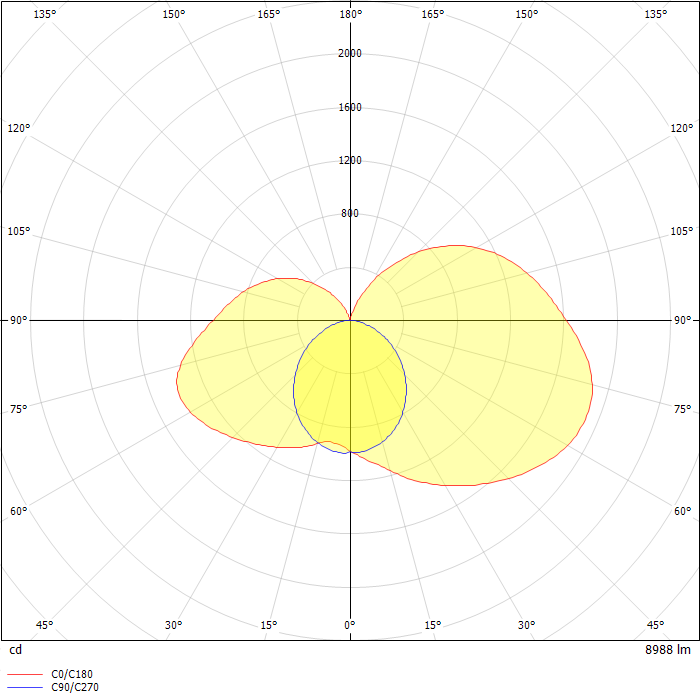

Photometric data

ZIP file

Download file
