Product data sheet

Basic Max Recessed Aurora - N1

BN1OSE-840M-D300-R

Lightnet

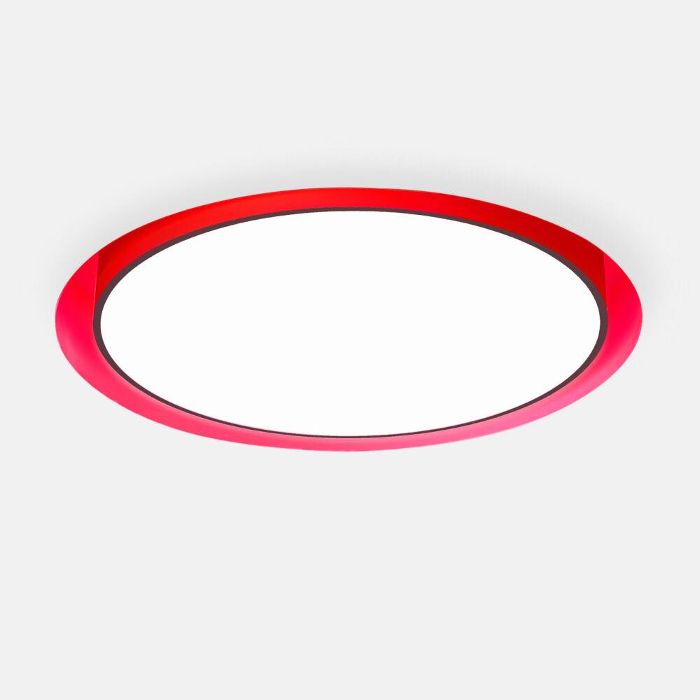

Recessed mounted LED luminaire for Aurora installation in plasterboard ceilings. Direct light distribution and indirect lighting corona. Luminaire body made of aluminum profile. Surface silver, white, graphite, copper, champagne or black coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (1-10V, DALI, Touch-Dim, Casambi). Colour temperatures 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning initial ≤ MacAdam 3. Colour rendering CRI>80 or CRI>90. Mounting brackets included. Colour selection for the indirect light aura: red, green, blue and magenta. On request: Integration of emergency lighting components, sensor technology.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 21 W 1960 lm 93 lm/W 4000 K 82
Basic Max Recessed Aurora - N1

Basic Max Recessed Aurora - N1

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 300 mm

Diameter: 300 mm

Adjustability

Fixed

Electric

System power: 21 W

Protection

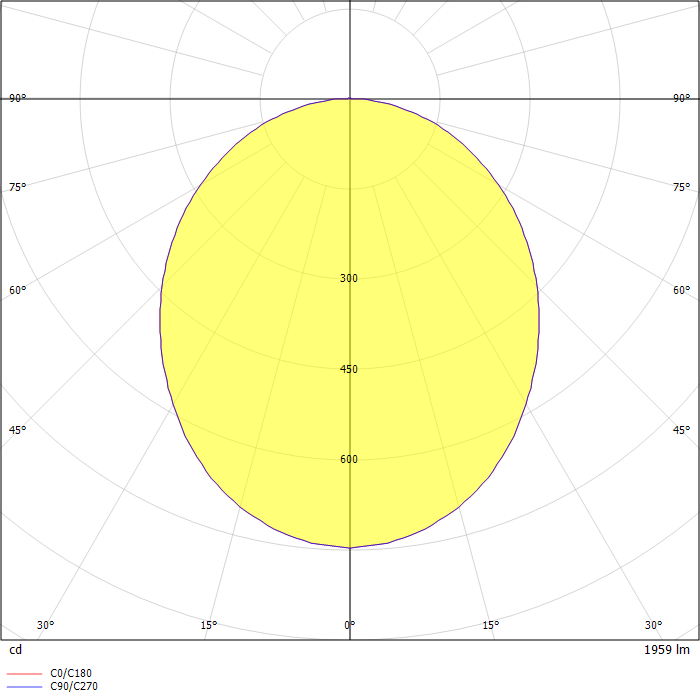

Photometric data

ZIP file
