Product data sheet

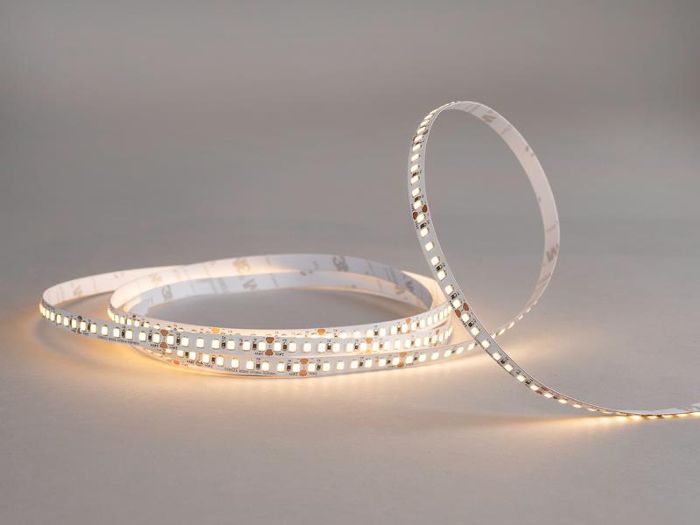

LEDstrip 24V IP20 Midlum 3000K_41.6mm

7509829

Hide-a-lite

LEDstrip 24V IP67 comes with three lumen outputs, Low, Mid and High, to make it easier to find the right light for the right place, indoors or out. Want a subtle and relaxed atmosphere? Choose Low. Need more powerful lighting to bring out specific areas? Choose High. Perfect when you want to adapt the light to create character whatever the environment. Fits perfectly in our range of aluminium profiles. Very good colour rendering, RA > 90. Comes as standard in rolls of five metres with two metre connecting cable at each end, a quick connection and self-adhesive tape for easy installation. Five metre packs contain products to enable you to create three different lengths to suit your needs. LEDstrip 24V is also available made to measure in optional lengths. Drivers are ordered separately according to required dimmer technology and placing.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 0.4 W 47 lm 118 lm/W 3000 K 90
LEDstrip 24V IP20 Midlum 3000K_41.6mm

LEDstrip 24V IP20 Midlum 3000K_41.6mm

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Mounting rail / light-band

Shape and measurements

Length: 42 mm

Width: 8 mm

Height: 2 mm

Adjustability

Fixed

Electric

System power: 0.4 W

Appliance Class: III

Protection

IP: 67

Designation labels: CE

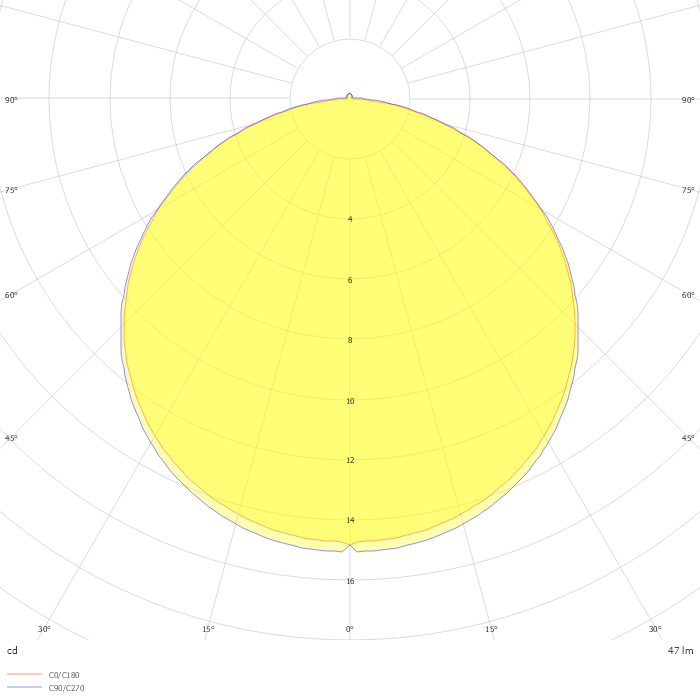

Photometric data

ZIP file
