Product data sheet

英朗系列LED灯盘

PAK567068 PAK-LED-B11-36B2-840-J

PAK

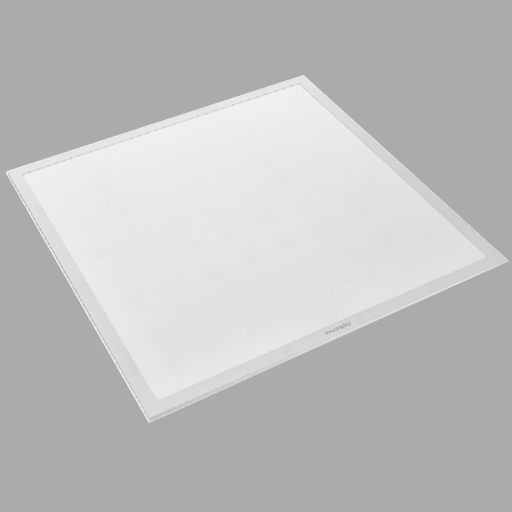

Product image 1: 英朗系列LED灯盘
Product image 1: 英朗系列LED灯盘

Product image 1: 英朗系列LED灯盘



IP
20

壳体：铝合金面框采用高压静电喷粉处理，长期使用不会刮花、磨损; 反光罩：透光罩采用光学级PS材料，透光性好; 功率：36W; 光源：SMD LED; 色温：4000K/6500K; 光效：100lm/W; 灯具总输出流明:3600lm; 显色指数：≥80; 光束角度：宽光; 适配电器：双极恒流驱动; 工作电压：AC220V 50Hz; 防护等级：IP20; 功率因数：≥0.95; 产品尺寸：L1199×W299×H22(mm); 安装方式：嵌入式、平放式、集成吊顶;

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 36 W 3600 lm 100 lm/W 4000 K 85
英朗系列LED灯盘

英朗系列LED灯盘

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 299 mm

Width: 1199 mm

Height: 22 mm

Adjustability

Fixed

Electric

System power: 36 W

Protection

IP: 20

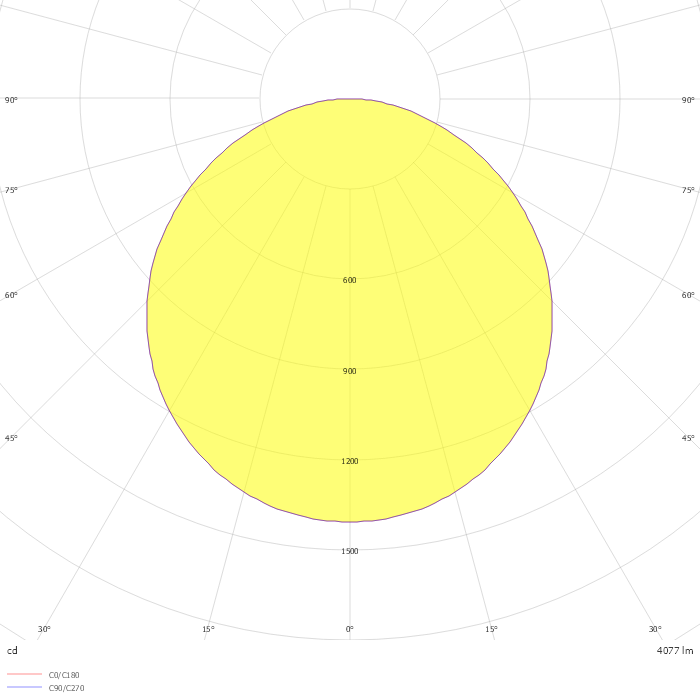

Photometric data

ZIP file

Download file
