Product data sheet

ARCSHINEM18FC

ARCSHINEM18FC_FULL_8DEG+3060DEG FILTER

Prolights

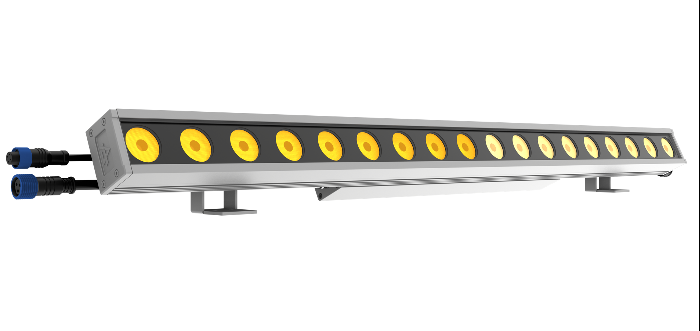

The ArcShine M18FC and ArcShine M9FC are a series of linear LED fixtures, designed for interior and exterior applications (IP67) such as flood lighting, wall washing and accent lighting. There are two sizes available, one with 18 LEDs (100 cm) and the other with 9 (50 cm) LED emitters, 4W each, with RGB + Warm White colour mixing. Its die-cast aluminium body with tempered glass make them perfect additions to urban structures or historical buildings. Fixed optic: 8° lenses capable of delivering multiple angles with optional holographic filters. Optional holographic symmetric and elliptical filters available: 20°, 40°, 60°, 10°x60°, 30°x60°. The ArcShine range has an on-board power supply and DMX/RDM control. The 100 cm version is controllable in two sections. Features: IP67 design, AC 100-240V and driver on-board, DMX/RDM controllable RGB + Warm White colour mixing, with 4W LED emitters Fixed optic: 8° lenses capable of delivering multiple angles with optional holographic filters. Optional holographic symmetric and elliptical filters available: 20°, 40°, 60°, 10°x60°. 30°x60°.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 77.6 W 2460 lm 32 lm/W 0 K 79
ARCSHINEM18FC

ARCSHINEM18FC

Light output 1

1 x LED

Mounting mode

Standing / Bollard, Pole top mounted

Shape and measurements

Length: 755 mm

Width: 50 mm

Height: 50 mm

Adjustability

Rotatable, Tiltable, Free

Electric

System power: 80 W

Controller: DMX

Colour adjustable

Appliance Class: I

Protection

IP: 67

IK: 08

Surface temperature: 85°C

Designation labels: CE

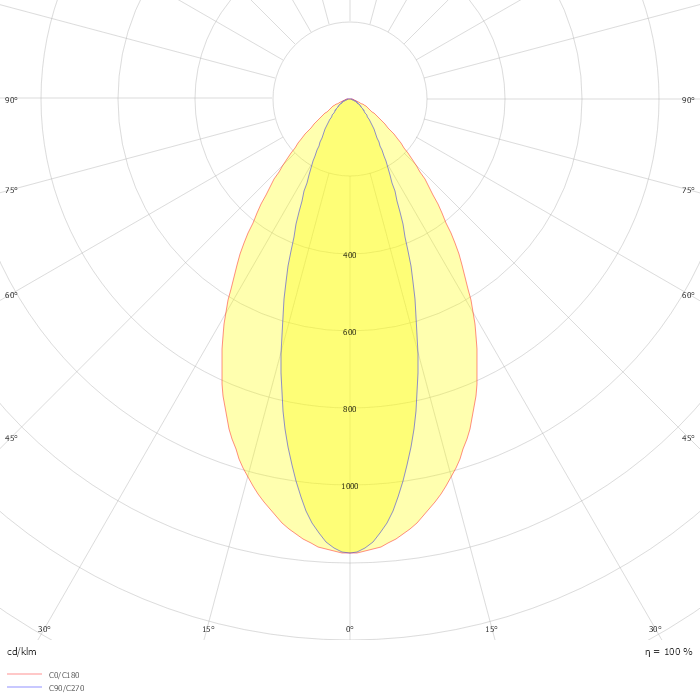

Photometric data
