Product data sheet

SOLI - 52 SHHH 93045

27181 9330

Delta Light

Product image 1: SOLI - 52 SHHH 93045
Product image 1: SOLI - 52 SHHH 93045

Product image 1: SOLI - 52 SHHH 93045



IP
20

Luminaire, low voltage systems low voltage system mounted (indoor use) from Deltalight, named SOLI - 52 SHHH 93045, available in the colour(s): black, gold coloured, white. This luminaire can be used with the following 48V lighting system(s): SOLI - SHHH PLUS 120, SOLI - SHHH PLUS 60, SOLI - SHHH PLUS 90. This luminaire is equipped with LED array 10,3W / CRI>90 (R9: 52) / 3000K / 1281lm with an optional driver, suitable for currents of 600mA. Light distributor: reflector 45°.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 10 W 1281 lm 128 lm/W 3000 K 90
1 x LED 10 W 1281 lm 128 lm/W 3000 K 90
1 x LED 10 W 1281 lm 128 lm/W 3000 K 90
1 x LED 10 W 1281 lm 128 lm/W 3000 K 90
1 x LED 10 W 1281 lm 128 lm/W 3000 K 90
1 x LED 10 W 1281 lm 128 lm/W 3000 K 90
1 x LED 10 W 1281 lm 128 lm/W 3000 K 90
1 x LED 10 W 1281 lm 128 lm/W 3000 K 90
1 x LED 10 W 1281 lm 128 lm/W 3000 K 90
1 x LED 10 W 1281 lm 128 lm/W 3000 K 90
1 x LED 10 W 1281 lm 128 lm/W 3000 K 90
1 x LED 10 W 1281 lm 128 lm/W 3000 K 90
1 x LED 10 W 1281 lm 128 lm/W 3000 K 90
SOLI - 52 SHHH 93045

SOLI - 52 SHHH 93045

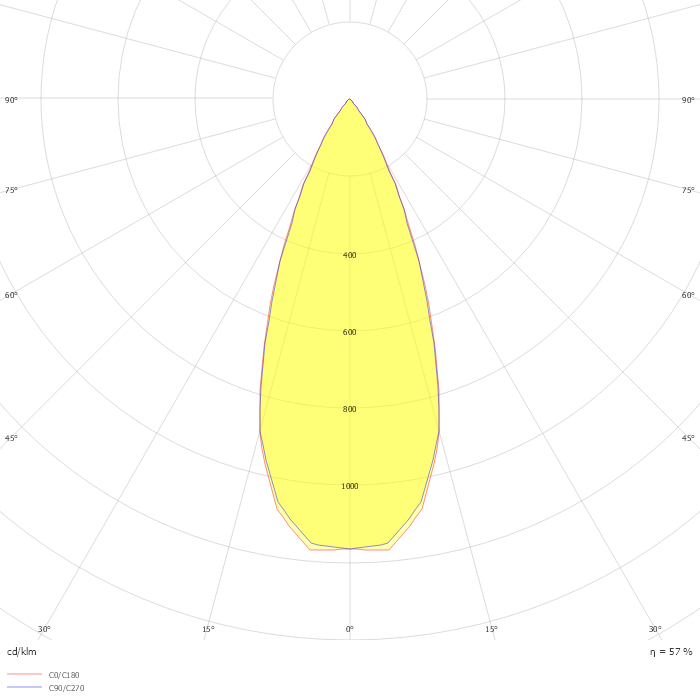

Light output 1

1 x LED

SOLI - 52 SHHH 93045

SOLI - 52 SHHH 93045

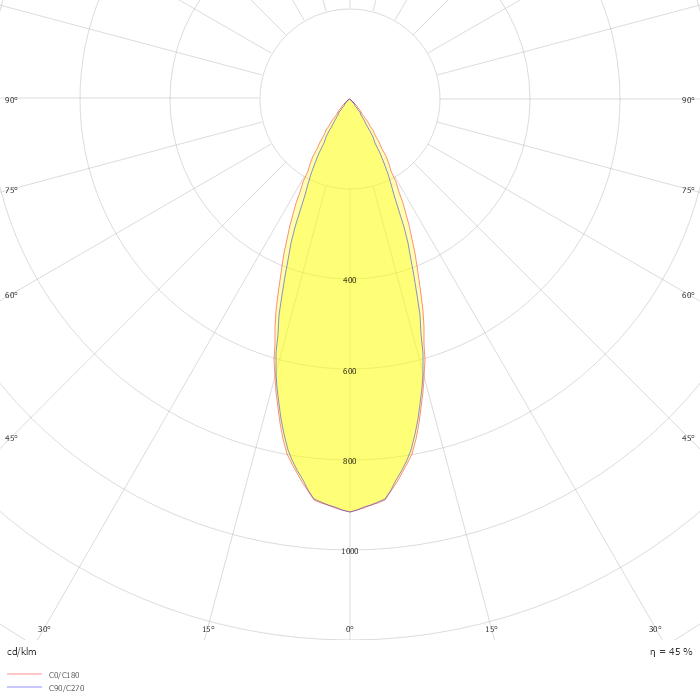

Light output 1

1 x LED

SOLI - 52 SHHH 93045

SOLI - 52 SHHH 93045

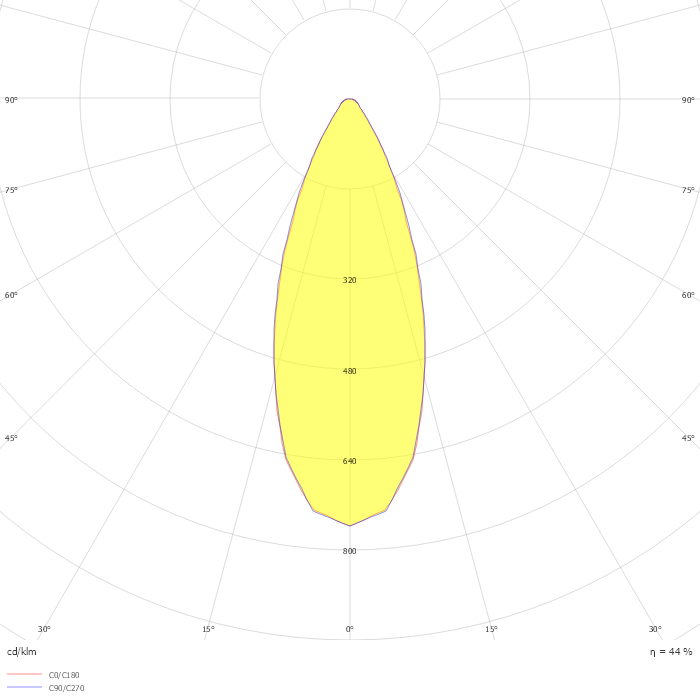

Light output 1

1 x LED

SOLI - 52 SHHH 93045

SOLI - 52 SHHH 93045

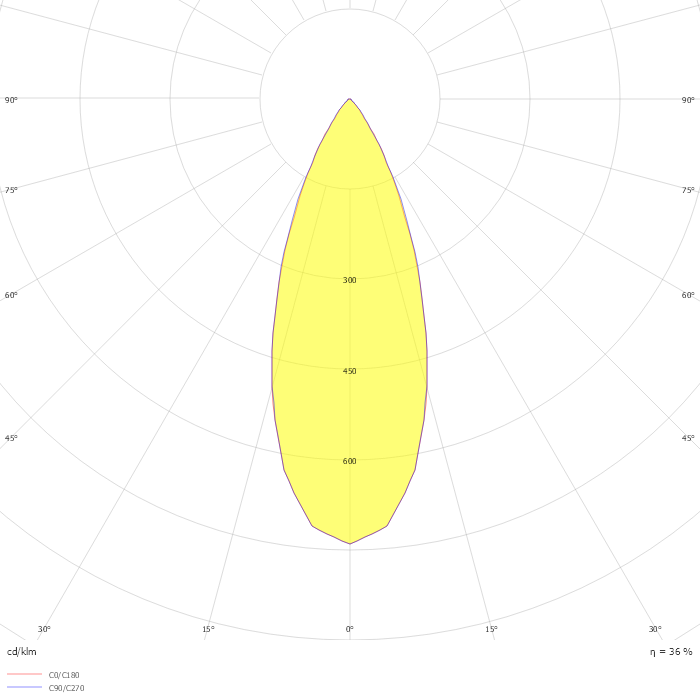

Light output 1

1 x LED

SOLI - 52 SHHH 93045

SOLI - 52 SHHH 93045

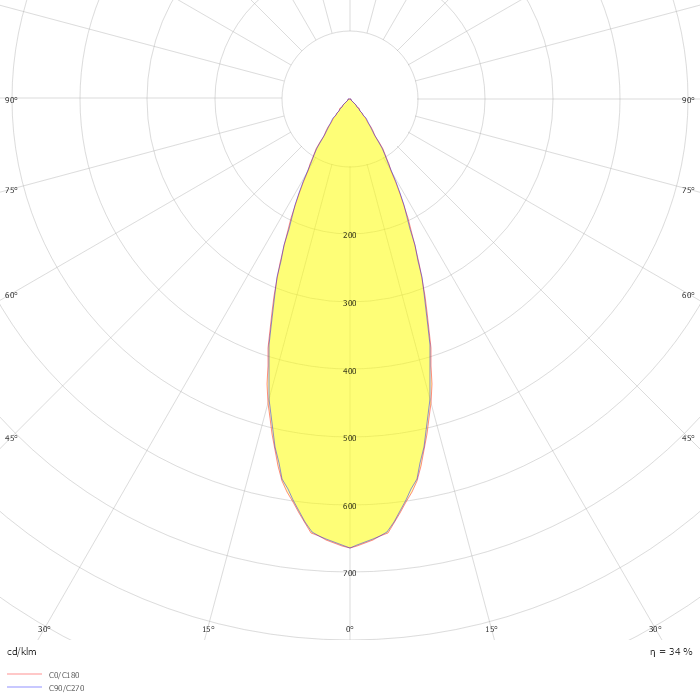

Light output 1

1 x LED

SOLI - 52 SHHH 93045

SOLI - 52 SHHH 93045

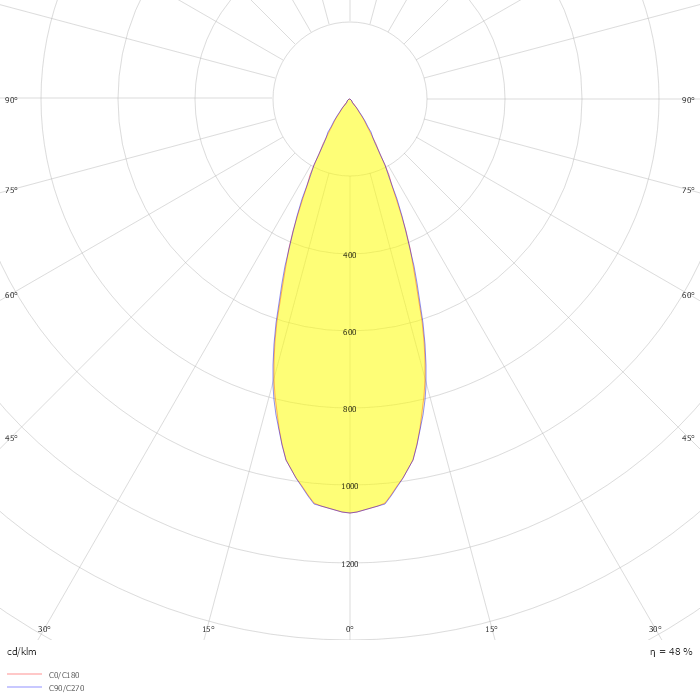

Light output 1

1 x LED

SOLI - 52 SHHH 93045

SOLI - 52 SHHH 93045

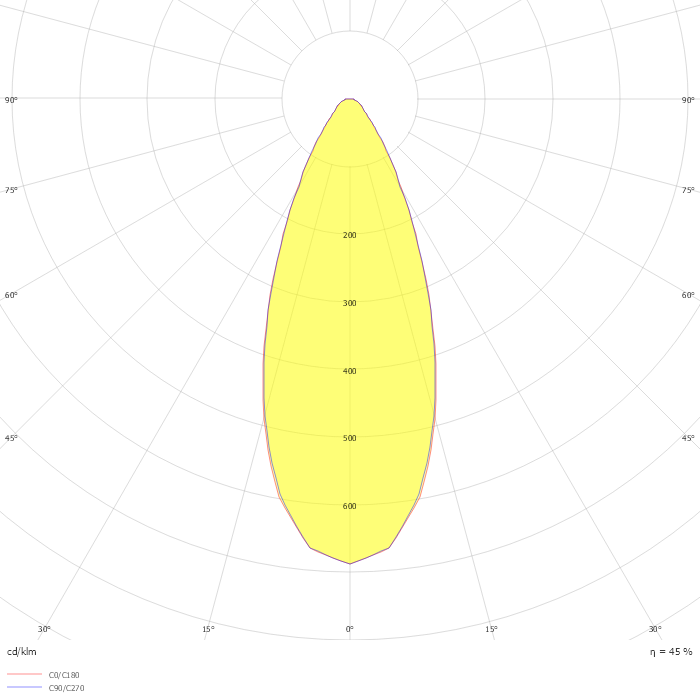

Light output 1

1 x LED

SOLI - 52 SHHH 93045

SOLI - 52 SHHH 93045

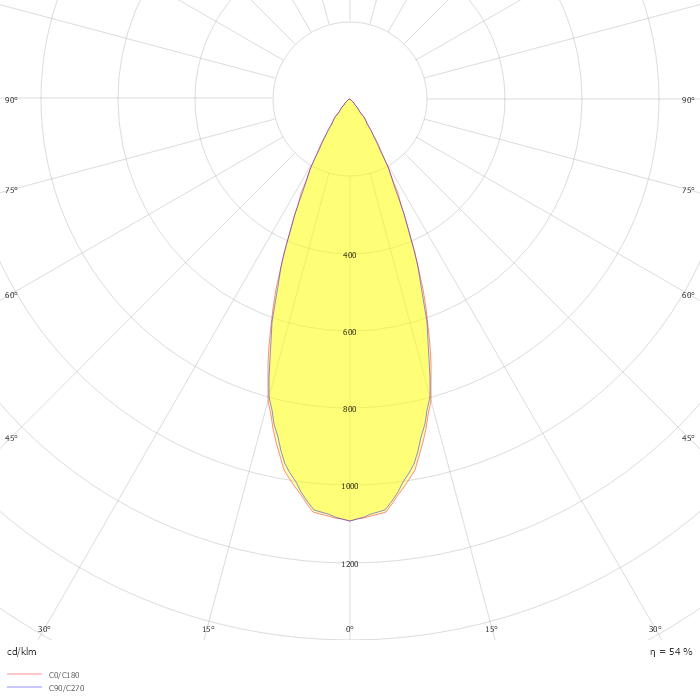

Light output 1

1 x LED

SOLI - 52 SHHH 93045

SOLI - 52 SHHH 93045

Light output 1

1 x LED

SOLI - 52 SHHH 93045

SOLI - 52 SHHH 93045

Light output 1

1 x LED

SOLI - 52 SHHH 93045

SOLI - 52 SHHH 93045

Light output 1

1 x LED

SOLI - 52 SHHH 93045

SOLI - 52 SHHH 93045

Light output 1

1 x LED

SOLI - 52 SHHH 93045

SOLI - 52 SHHH 93045

Light output 1

1 x LED

Mounting mode

Pendant, Contact rail

Shape and measurements

Length: 19 mm

Width: 40 mm

Height: 23 mm

Electric

System power: 12 W

Appliance Class: II

Protection

IP: 20

Designation labels: CE

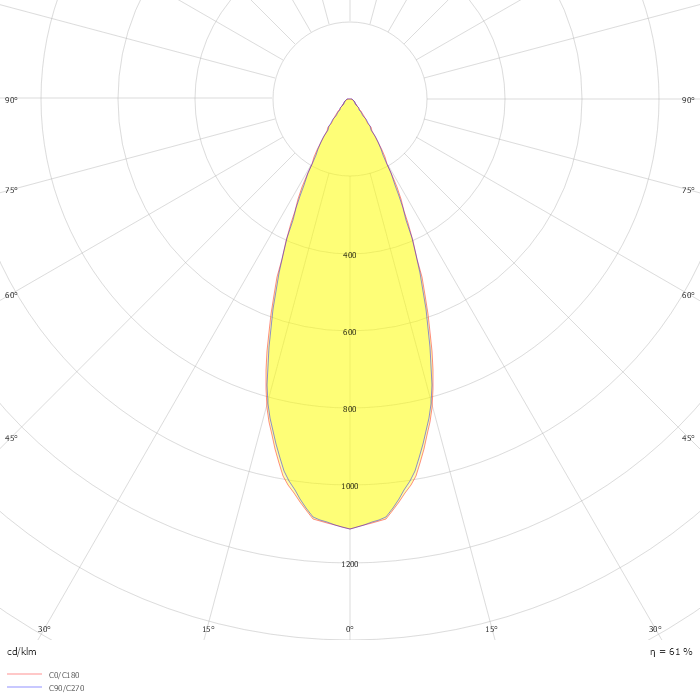

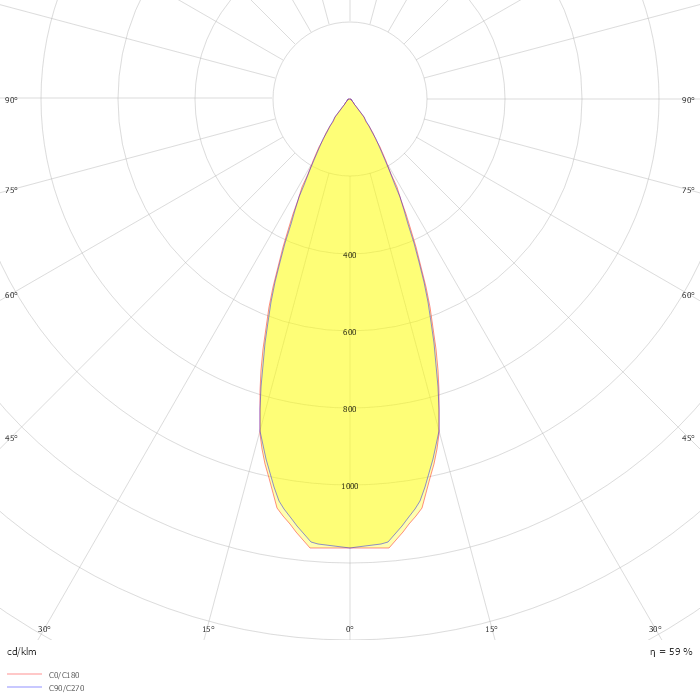

Photometric data

ZIP file

Download file
