Product data sheet

AGAT CLEAN SLIGHT LED 3900 OPTICS-2L SH IP65 E 34 840 / 600X600

19.4056.2221.34

LUXIONA

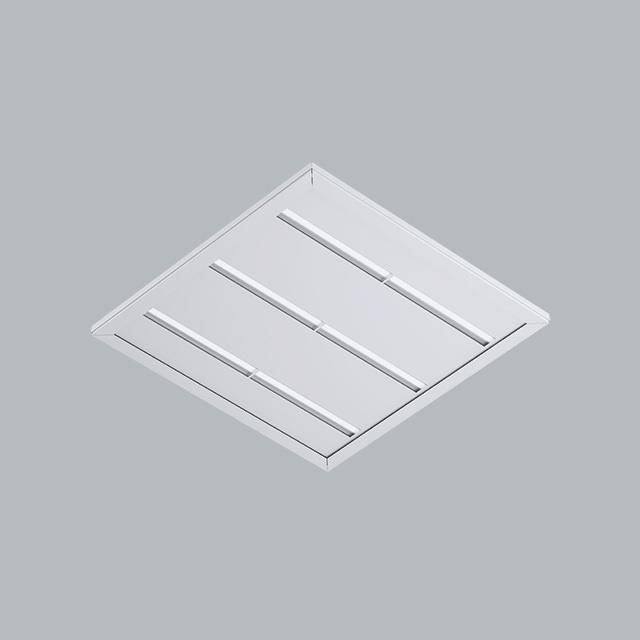

Product image 1: AGAT CLEAN SLIGHT LED 3900 OPTICS-2L SH IP65 E 34 840 / 600X600
Product image 1: AGAT CLEAN SLIGHT LED 3900 OPTICS-2L SH IP65 E 34 840 / 600X600

Product image 1: AGAT CLEAN SLIGHT LED 3900 OPTICS-2L SH IP65 E 34 840 / 600X600



IP
65

IK
08

Indoor luminaire. Assembly: mounted in module ceilings. The body material is steel sheet. Colour - RAL 9016 (white). Luminaire dimensions: 595 x 595 x 35 mm. Diffuser: SH (transparent hardened glass). The efficiency of the optical system is 84,03%. Beam angle: (C0-C180) / (C90-C270) - 56,4° / 92,6°. Light source type: LED. Colour of the light 4000 K. SDCM=3. CRI>80. Lifetime of LED sources: 100000 (1) / 147000 (2) h L80/B10 (1) / L70/B50 (2). Luminaire luminous flux: 3299 lm. Power of luminaire: 21,7 W. Luminaire's light efficiency: 152 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 30 (B10), 48 (B16), 43 (C10), 70 (C16). Operating temperature range: 5 ÷ 30° C. Protection degree: IP65. Impact resistant: IK08. Protection against electric shock: I.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
3 x LED 7.233 W 1309 lm 181 lm/W 4000 K 80
AGAT CLEAN SLIGHT LED 3900 OPTICS-2L SH IP65 E 34 840 / 600X600

AGAT CLEAN SLIGHT LED 3900 OPTICS-2L SH IP65 E 34 840 / 600X600

Light output 1

3 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 595 mm

Width: 595 mm

Height: 35 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 21.7 W

Appliance Class: I

Protection

IP: 65

IK: 08

Other operating numbers

Ambient temperature range: 5...30°C

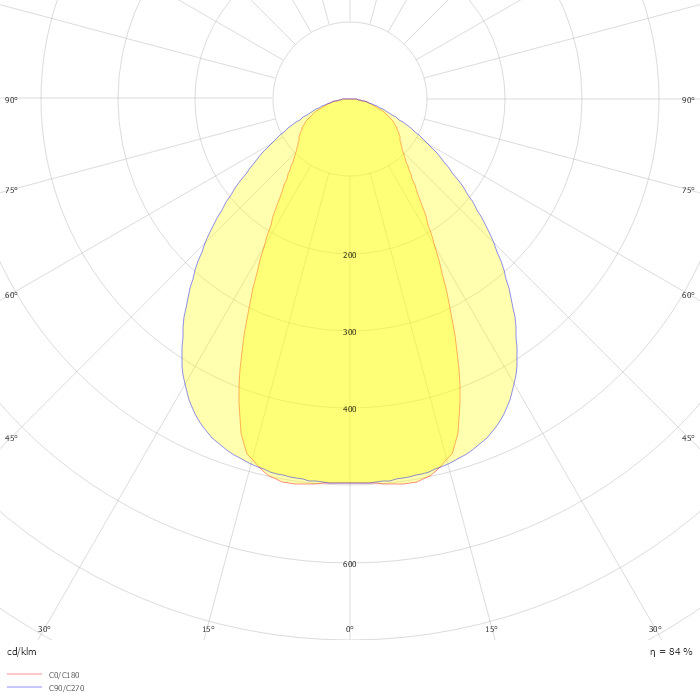

Photometric data

ZIP file

Download file
