Product data sheet

BeamTech Small 2x400lm CG-S (data set for one light head only)

BT2S-ECGS

Eaton Emergency Lighting

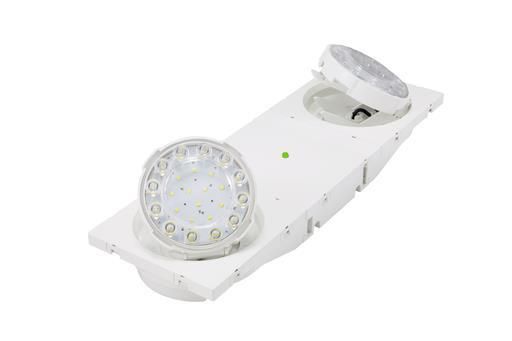

Product image 1: BeamTech Small 2x400lm CG-S (data set for one light head only)
Product image 1: BeamTech Small 2x400lm CG-S (data set for one light head only)

Product image 1: BeamTech Small 2x400lm CG-S (data set for one light head only)



IP
65

IK
07

• LED safety luminaire with high ingress protection class (IP65) with two adjustable light heads with 400 lm each • Light heads are rotatable in two axes in 15° steps and are equipped with a locking mechanism preventing accidental change of light head confi guration • Narrow or wide beam option can be confi gured individually per light head via jumper switches • For better aesthetics of the product the two IP65 cable glands are integrated in the power supply unit so that they are invisible after installation • One product applicable for escape route illumination, open area illumination or for illuminating points of emphasis in accordance with EN 1838 • Narrow beam option enables escape illumination from up to 30 m height and gives a maximum spacing between luminaires up to 29 m • Wide beam option for wide area lighting with up to 16 m height and up to 20 m spacing • Shortened inspection effort due to CEWA GUARD technology • Automatic function monitoring for up to 20 luminaires per circuit • Reduced installation cost through STAR Technology • Freely programmable mixed operation, allowing the switching of luminaire modes within one circuit

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 4.4 W 400 lm 91 lm/W 6500 K 80
1 x LED 4.4 W 400 lm 91 lm/W 6500 K 80
BeamTech Small 2x400lm CG-S (data set for one light head only)

BeamTech Small 2x400lm CG-S (data set for one light head only)

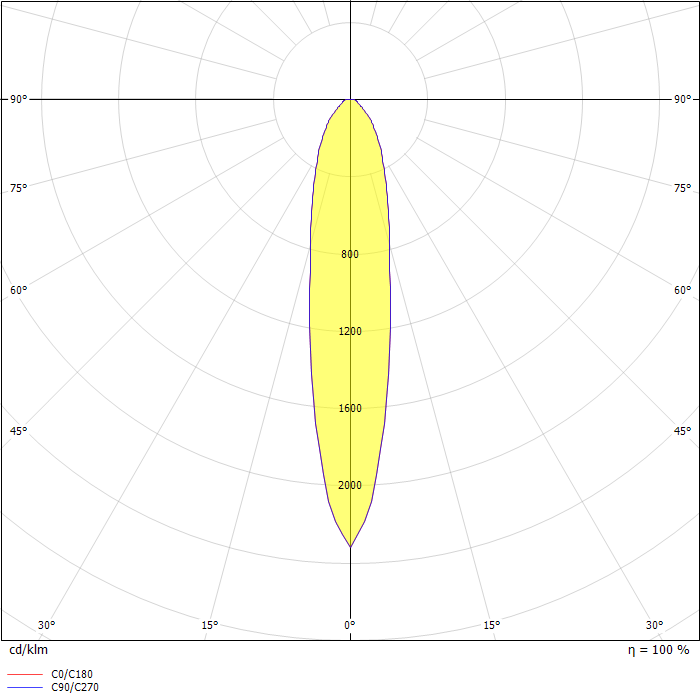

Light output 1 (emergency)

1 x LED

BeamTech Small 2x400lm CG-S (data set for one light head only)

BeamTech Small 2x400lm CG-S (data set for one light head only)

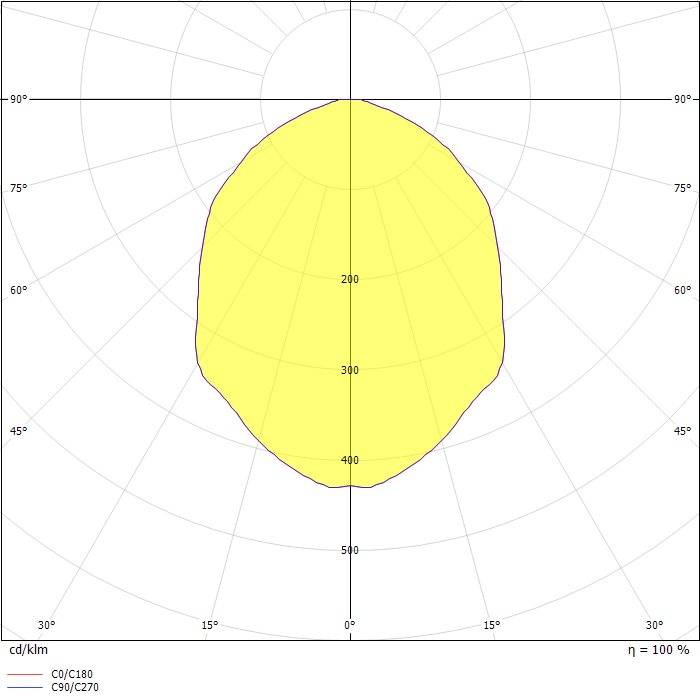

Light output 1 (emergency)

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Height: 10 mm

Diameter: 115 mm

Adjustability

Fixed

Electric

System power: 4.4 W

Appliance Class: II

Information regarding emergency functions

Emergency lighting only

Emergency sign: N/A

Protection

IP: 65

IK: 07

Photometric data

ZIP file
