Product data sheet

O52-340 LED 3000 740 WBA

Glamox

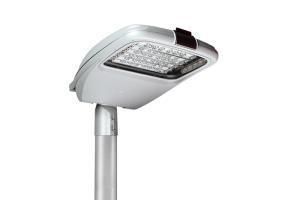

Product image 1: O52-340 LED 3000 740 WBA
Product image 1: O52-340 LED 3000 740 WBA

Product image 1: O52-340 LED 3000 740 WBA



IP
66

IK
09

Light source: LED Lumen out: 3080 CRI: 70 Colour temperature: 4000 Total effect: 22 Lumen per watt: 140 Optic: WBA Driver: DALI;HF;ND1;ND2 Main body material: Aluminium IP class: 66 IK class: 9

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 22 W 3080 lm 140 lm/W 4000 K 70
O52-340 LED 3000 740 WBA

O52-340 LED 3000 740 WBA

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 340 mm

Width: 494 mm

Height: 135 mm

Adjustability

Fixed, Tiltable

Electric

System power: 22 W

Protection

IP: 66

IK: 09

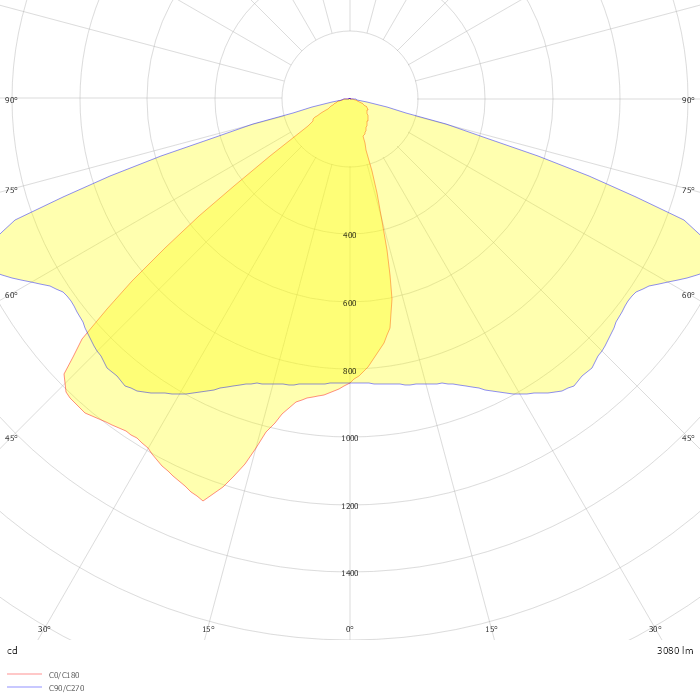

Photometric data

ZIP file

Download file
