Product data sheet

RL111 4000K 40°

RL1114040

Collingwood

Ideal for restaurants and other hospitality spaces, this powerful replacement for AR111 lamps, utilises the latest single source LED technology to create efficient, interesting lighting schemes. Available in 20° or 40° beam angles, this RL111 can be retrofitted into existing housing or Collingwood Lightings own range of housings for easy installation. It's possible to dim this RL111 via mains, Dali or 1-10v dimming by using a range of LED power supplies. Features & Benefits: LED colours: 4000K, 3000K & 2700K Beam angle: 20° & 40° Lumens: 1200lm, 12W (4000K) Casing finish: aluminium Dimmable: Mains, 1-10v & Dali (driver dependant)

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 12 W 1200 lm 100 lm/W 4000 K 84
RL111 4000K 40°

RL111 4000K 40°

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 2 mm

Diameter: 111 mm

Adjustability

Fixed

Electric

System power: 12 W

Protection

IP: 40

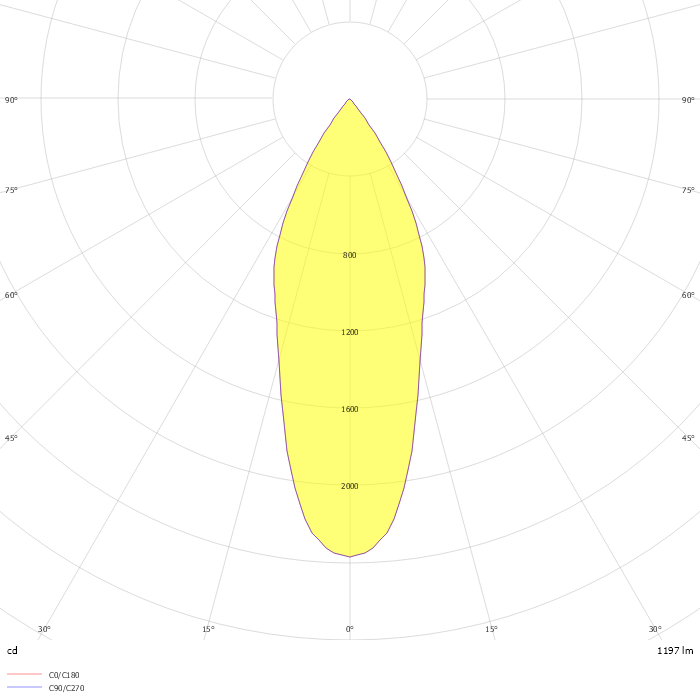

Photometric data

ZIP file
