Product data sheet

途星系列LED路灯

PAK481203 PAK-LED-K12-100-740

PAK

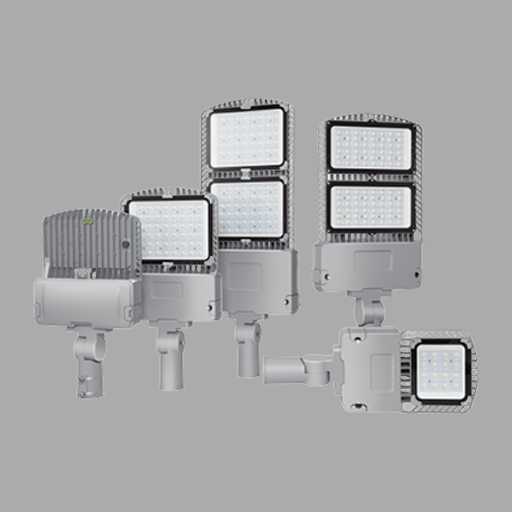

Product image 1: 途星系列LED路灯
Product image 1: 途星系列LED路灯

Product image 1: 途星系列LED路灯



IP
66

名称:途星系列LED路灯 壳体:专业防水结构设计，配备呼吸器; 反光罩:光学透镜; 功率:100W; 光源:SMD LED; 色温:3000K/4000K/5000K; 显色性:Ra70+; 光束角:120°×150°; 灯具总输出流明:13500lm; 使用寿命:30000Hrs; 抗雷击浪涌等级：10KV; 防腐等级：WF2; 防护等级:IP66; 产品尺寸：L508*W291*H94(mm); 适配电器:隔离型独立驱动（无频闪）; 主电压:220V/50Hz; 功率因数：0.95; 安装方式:支架式安装。

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 100 W 13500 lm 135 lm/W 4000 K 85
途星系列LED路灯

途星系列LED路灯

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pole top mounted

Shape and measurements

Length: 401 mm

Width: 293 mm

Height: 99 mm

Adjustability

Rotatable

Electric

System power: 100 W

Protection

IP: 66

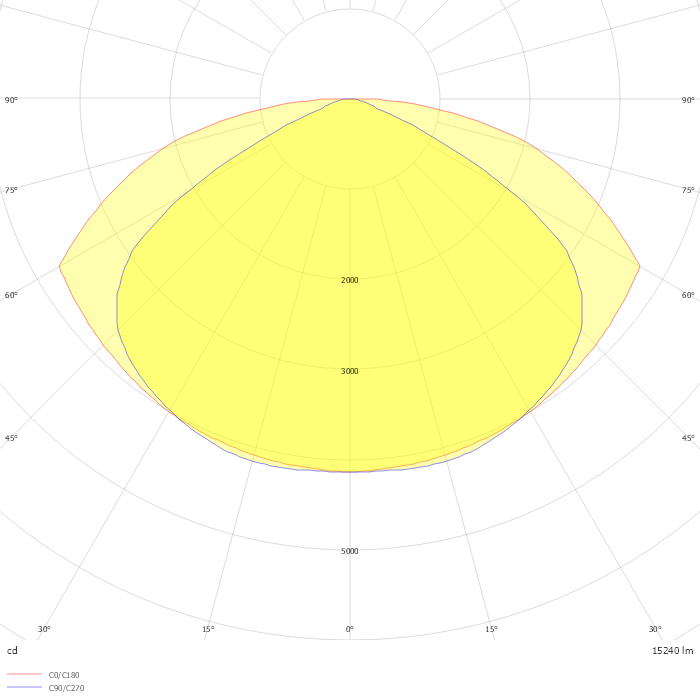

Photometric data

ZIP file

Download file
