Product data sheet

STORMBELL 80 SUT 1500 WW MFL BK/WH+ ACC. BELL STORMBELL 80 Ø86x50 WH

ST18STLOMF930NBW+S8BE86W

Lamp

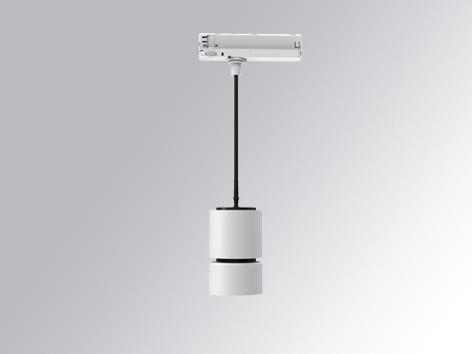

Product image 1: STORMBELL 80 SUT 1500 WW MFL BK/WH+ ACC. BELL STORMBELL 80 Ø86x50 WH
Product image 1: STORMBELL 80 SUT 1500 WW MFL BK/WH+ ACC. BELL STORMBELL 80 Ø86x50 WH

Product image 1: STORMBELL 80 SUT 1500 WW MFL BK/WH+ ACC. BELL STORMBELL 80 Ø86x50 WH



IP
20

Downlight to suspend on TRACK 220V rail model STORMBELL 80 SUT 1500 WW MFL BK/WH LAMP brand. Body made of injected aluminum with white/black/Materiality finish, and with black/opal polycarbonate ring, for decorative lighting effect and possibility of accessory color filter, depending on his model. COB LED 3000K color temperature and CRI90. Aluminium reflector MEDIUM FLOOD. Luminaire with ceiling rose and electronic equipment included. Insulation class I. LED life time: 50000 L90 B10. Compatible with 4 different models of hoods (accessories) that complete the luminaire. + Accessory for suspended luminaries modell ACC. BELL STORMBELL 80 Ø86x50 WH LAMP brand. Body made of aluminum with white/black/Materiality finish. + Accessory for suspended luminaries modell ACC. BELL STORMBELL 80 Ø86x50 WH LAMP brand. Body made of aluminum with white/black/Materiality finish.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 14.7 W 1144 lm 78 lm/W 3000 K 90
STORMBELL 80 SUT 1500 WW MFL BK/WH+ ACC. BELL STORMBELL 80 Ø86x50 WH

STORMBELL 80 SUT 1500 WW MFL BK/WH+ ACC. BELL STORMBELL 80 Ø86x50 WH

Light output 1

1 x LED

Mounting mode

Pendant

Shape and measurements

Height: 135 mm

Diameter: 86 mm

Weight: 5.5 kg

Adjustability

Fixed

Electric

System power: 14.7 W

Appliance Class: I

Protection

IP: 20

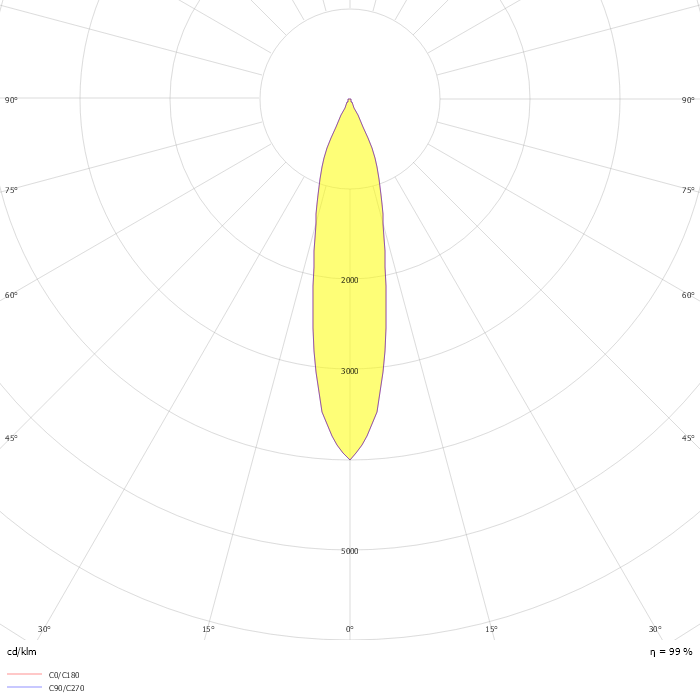

Photometric data

ZIP file
