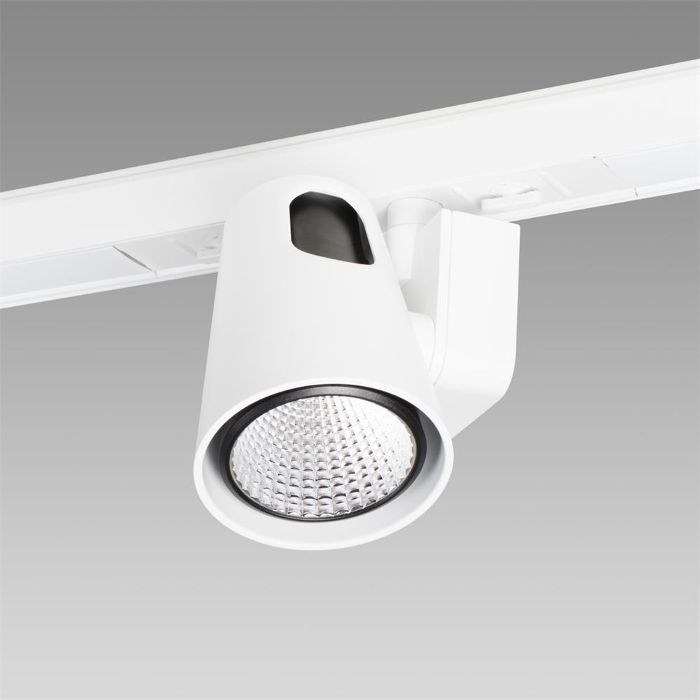

Mounting rail spotlight Matrix for mounting directly onto the Traq Linear support profile, with LED, colour rendering index CRI > 90, system power: 26 W, luminous flux of luminaire 3100 lm, colour temperature 3000 K, warm white, colour tolerances SDCM 3, lifetime LED L80 50'000 h, photobiological safety: the luminaire poses no danger (RG0), 230 V, direct light emission, 1 integral control gear, ON/OFF, control gear box in die-cast aluminium, silver, reflector housing in die-cast aluminium, wide beam, (F), 40°, Regent certified MINERGIE®-Modul luminaires S.A.F.E. 2019 (Re-0310), luminaire complies with the strict requirements for Minergie-certified luminaires protection class I, ingress protection IP20, glow wire test 650 °C, this product contains a light source of energy efficiency class E Ø = 127 mm, L = 175 mm, B = 92 mm, A = 210 mm, pivotable 360°, swivelling 45°, length of module (TRAQ strip) 295 mm
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 26 W | 3100 lm | 119 lm/W | 3000 K | 90 |
Mounting mode
Ceiling mounted, Contact rail
Shape and measurements
Length: 179 mm
Width: 315 mm
Height: 203 mm
Adjustability
Rotatable, Tiltable
Design
Colour of housing: Silver gray
Electric
System power: 26 W
Appliance Class: I
Protection
IP: 20

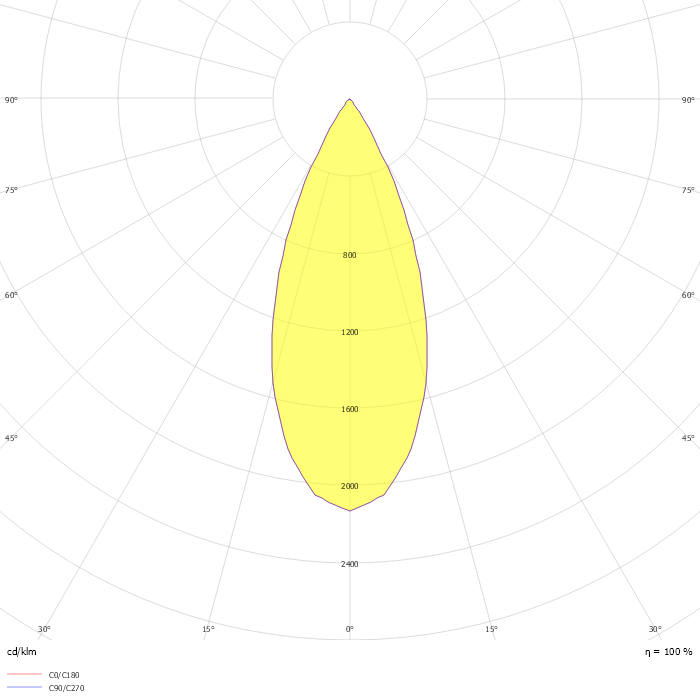

Photometric data
ZIP file
