Product data sheet
TKGC L35 30° LE3

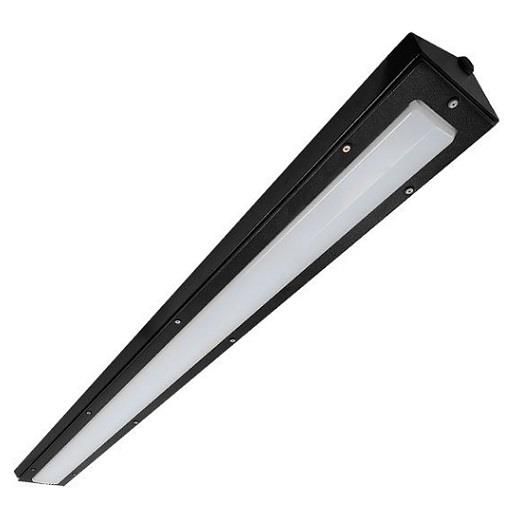

Tanek Cornice Glass Emergency
Dextra
Tanek Glass Cornice - 1500mm, IP65, IK10 Cornice mounted luminaire, constructed from robust 1.2mm CR4 steel, toughened glass diffuser, weather resistant and salt spray tested, tamper resistant diffuser fixings, two 20mm side cable entries. Options: LE3 - Lithium Emergency LS3 - Lithium Selftest LA3 - Lithium Autotest S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function)* R25E - Reacta 25, On / Off High Frequency R25C - Reacta 25, Corridor Mode* RLM - Reacta-Link Wireless Microwave Presence & Bright Out RCME - Reacta-Control Wireless Microwave On/Off RCMC - Reacta-Control Wireless Microwave Corridor Mode* *Bi-Level Dimming. Will only dim the luminaire to 10% during absence and brightout, it will not turn the luminaire off. WH - White Finish BL - Black Finish C83 - CRI 80, 3000K
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 20.3 W | 2491 lm | 123 lm/W | 4000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 600 mm
Width: 200 mm
Height: 120 mm
Adjustability
Fixed
Electric
System power: 23.3 W
Ballast: ECG
Controller: Dimmable 1..10V, DALI
Appliance Class: I
Information regarding emergency functions
Supplementary emergency lighting
Emergency power supply: Single battery 3 h
Emergency sign: N/A
Protection
IP: 65
IK: 10
Resistant to impact of balls
Designation labels: CE

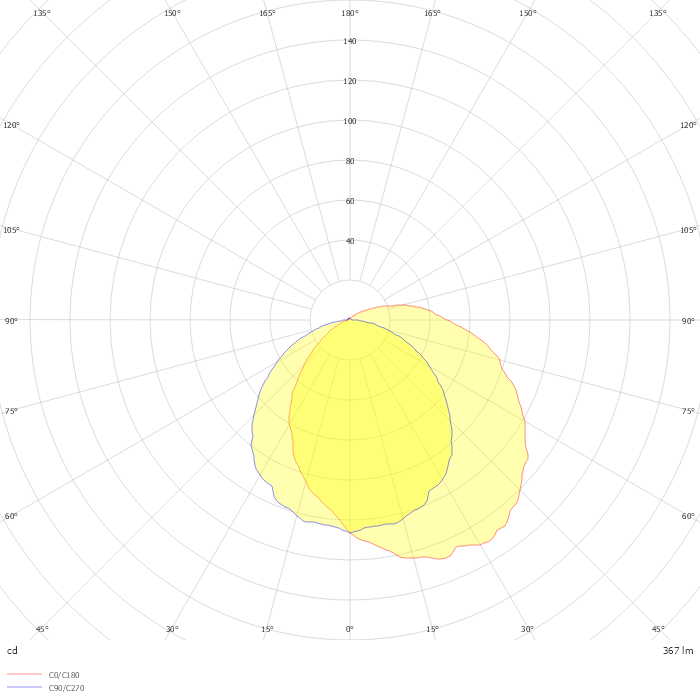

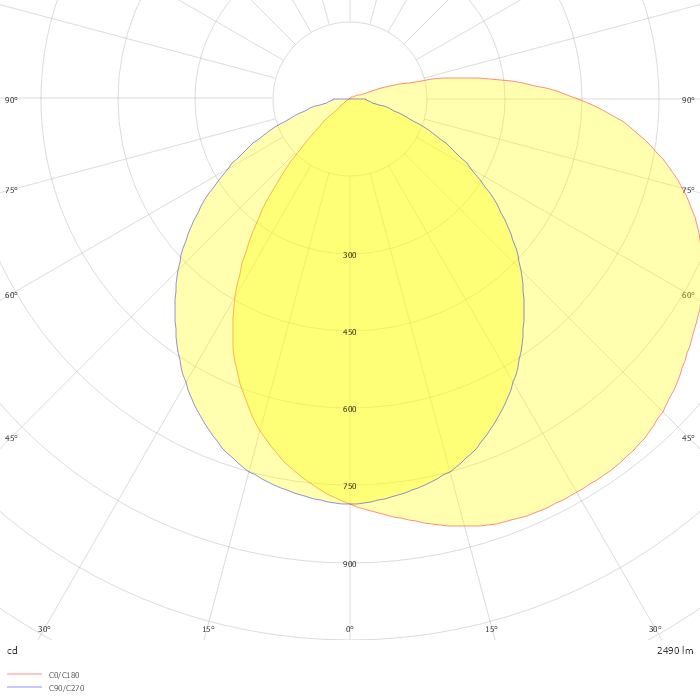

Photometric data
ZIP file
