Product data sheet

AREAMASTER LED Zone 1 Series 9000 LUMENS  NEMA  7X 7 FROSTED GLASS 3000 K CCT

AMLZL6WF6BU

Appleton (Emerson EGS)

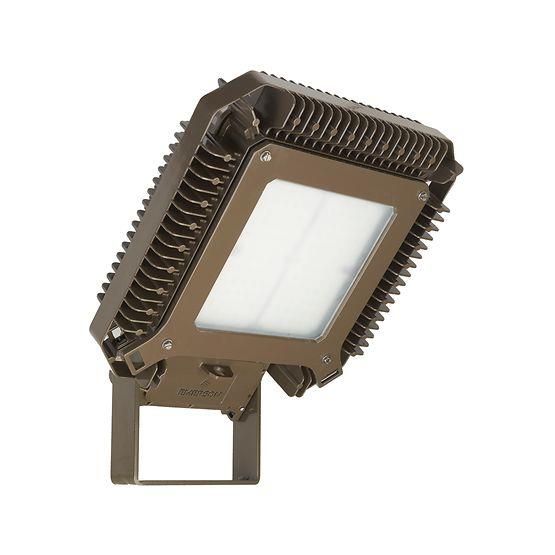

Product image 1: AREAMASTER LED Zone 1 Series 9000 LUMENS  NEMA  7X 7 FROSTED GLASS 3000 K CCT
Product image 1: AREAMASTER LED Zone 1 Series 9000 LUMENS  NEMA  7X 7 FROSTED GLASS 3000 K CCT

Product image 1: AREAMASTER LED Zone 1 Series 9000 LUMENS  NEMA  7X 7 FROSTED GLASS 3000 K CCT



IP
67

IK
08

Areamaster™ Generation 2 LED Zone 1 Luminaire Pole mount 3000 K CCT/ 80 CRI Pole Mount BU:-120-277 Vac, 50/60Hz, 170-300 Vdc, 3/4" NPT Hub Frosted Glass Zone 1 and 2 Zone 21 & 22 Ex eb mb op is IIC IP 64, 66,67 IK 08 Refer to catalog for additional options

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 65.3 W 6748 lm 103 lm/W 3114 K 80
AREAMASTER LED Zone 1 Series 9000 LUMENS  NEMA  7X 7 FROSTED GLASS 3000 K CCT

AREAMASTER LED Zone 1 Series 9000 LUMENS  NEMA  7X 7 FROSTED GLASS 3000 K CCT

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 159 mm

Width: 159 mm

Height: 145 mm

Adjustability

Free

Electric

System power: 65.3 W

Appliance Class: II

Protection

IP: 67

IK: 08

Explosion zone suitability: 1, 21

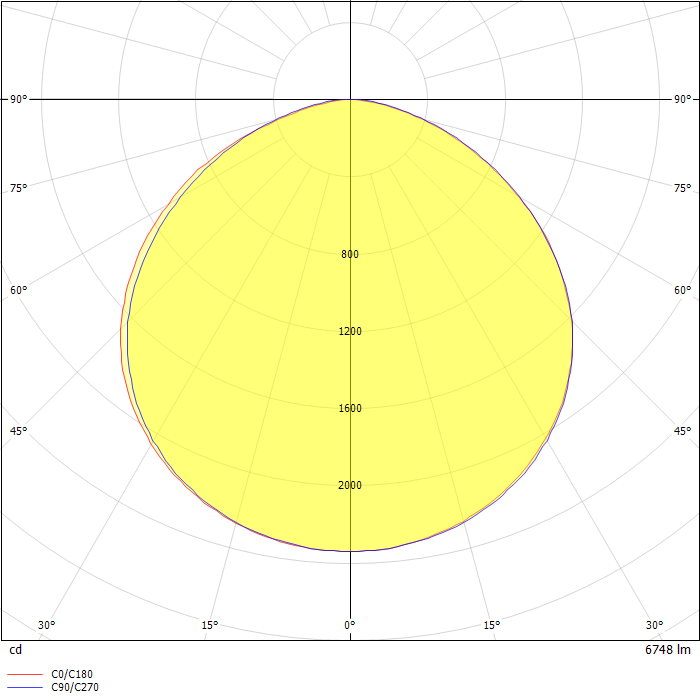

Photometric data
