Indoor luminaire. Assembly: mounted on a three-phase track. The body material is aluminum. Colour - RAL 9005 (black). Luminaire dimensions: Ø90 x 160 mm. Diffuser: PMMA lens. Beam angle: (C0-C180) / (C90-C270) - 31,6° / 31,8°. Light source type: LED. Colour of the light 4000 K. SDCM=6. CRI>90. Lifetime of LED sources: 60000 h L80/B10. Luminaire luminous flux: 4384,8 lm. Power of luminaire: 34,1 W. Luminaire's light efficiency: 128,6 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 28 (B10), 49 (B16), 29 (C10), 47 (C16). Operating temperature range: 5 ÷ 35° C. Protection degree: IP40. Impact resistant: IK04. Protection against electric shock: II. Photobiological risk class (IEC/EN 62471): RG0.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 34.1 W | 4385 lm | 129 lm/W | 4000 K | 90 |
Mounting mode
Ceiling mounted
Shape and measurements
Height: 160 mm
Diameter: 90 mm
Adjustability
Fixed
Design
Colour of housing: Black
Electric
System power: 34.1 W
Appliance Class: II
Protection
IP: 40
IK: 04
Other operating numbers
Ambient temperature range: 5...35°C

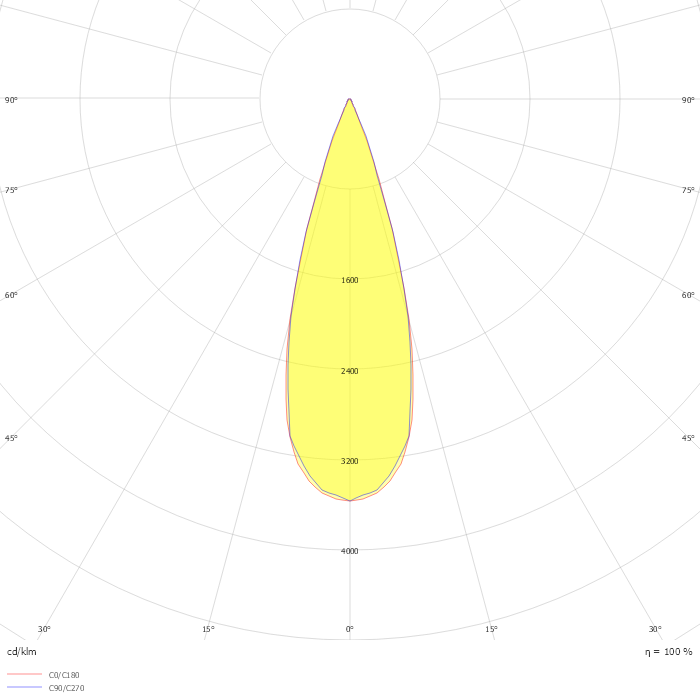

Photometric data
ZIP file
