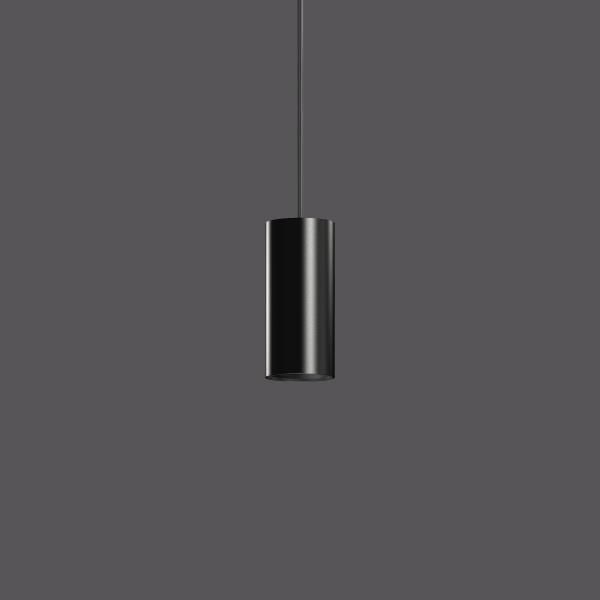

Series: Deecos Type of Protection: IP 20 Protection Class: I Voltage: 220 - 240 V / 50 - 60 Hz Ceiling canopy made of powder-coated sheet steel with magnetic attachment. Transparent pendant cable 2000 mm, can be shortened, with integrated steel cable. Housing: powder coated die cast aluminium. Heat-resistantplastic ring. Lens made of plastic (polycarbonate) included, can be changed without tools. Lamp (LED)included. LED converter included. Available Colours: deep black, matt (RAL 9005) Type of Installation: Pendant Dimensions: D 87, H 195 Lamp: LED Life time: 50000 h (L90/B10) Colour Temperature: 3000K Socket 1: without socket Operating Mode Lamp 1: Converter, dimmable, DALI Safety Marks: F-mark Impact Protection: IK06 (1 Joule) Luminaire flux LED: 2450lm System power: 29W Beam Angle: 44° Number of fittings B10A: 21 Number of fittings B16A: 34 Number of fittings C10A: 35 Number of fittings C16A: 57 Inrush current: 18A Unified Glare Ratio: 17,3 EEC: A++
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 30 W | 2350 lm | 78 lm/W | 3000 K | 80 |
Mounting mode
Wall mounted
Shape and measurements
Height: 195 mm
Diameter: 87 mm
Adjustability
Fixed
Design
Colour of housing: Black
Electric
System power: 30 W
Protection
IP: 20
IK: 06

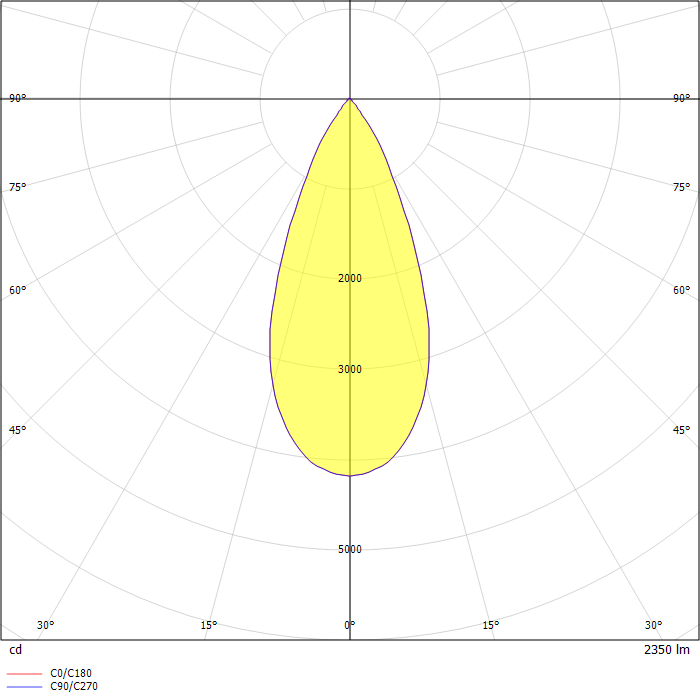

Photometric data
ZIP file
