Product data sheet

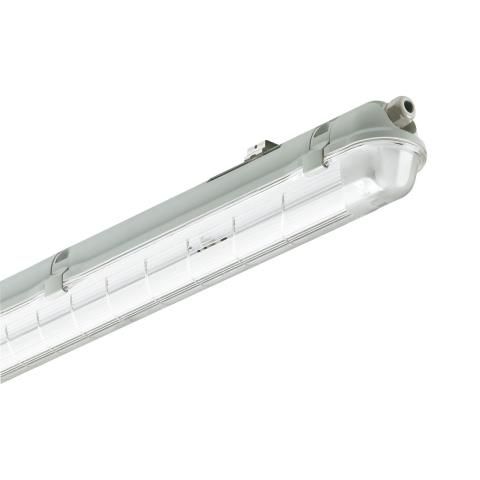

TCW060 TCW060 1xTL-D36W HF

TCW060

Philips

Waterproof lighting solution Designed for use in demanding environments, TCW060 is an economical, compact waterproof luminaire. Dedicated versions are available for TL-D and TL5 lamps. Ingress-protected to a level of IP65 and operating solely on electronic gear, this is a competitive energy-saving solution for wet spaces – at the same cost as an electromagnetic solution. A flexible ceiling clip facilitates easy installation and maintenance.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 36 W 2800 lm 55 lm/W 3000 K 90
TCW060 TCW060 1xTL-D36W HF

TCW060 TCW060 1xTL-D36W HF

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1270 mm

Width: 90 mm

Height: 100 mm

Electric

System power: 36 W

Protection

IP: 65

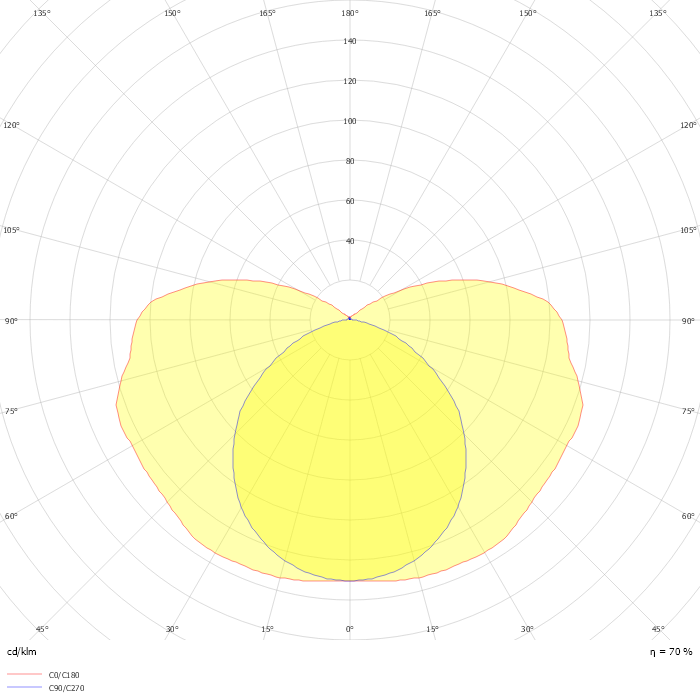

Photometric data

ZIP file
