Product data sheet

DAMP PROOF COMPACT GEN 1 1500 55W/3000K IP66 GR

4058075424289

LEDVANCE

Damp-proof luminaire, through-wired (L, N, E). Product features: High luminous efficacy: up to 120 lm/W. Type of protection: IP66. Beam angle: 120°. Through-wiring 3x1.5mm² already installed. Polycarbonate housing. Product benefits: Uniform light distribution. Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps). Easy installation as mounting brackets can be positioned freely on the luminaire. Easy access to electrical terminal thanks to end caps with twist and lock mechanism. Tool-free electrical connection due to push button connector. 5 years guarantee. Areas of application: Industrial and storage facilities. Car parks and underpasses. Garages. Workshops, assembly lines. Equipment / Accessories: Stainless steel clamps with safety screws included. Mounting accessories included (suspension kit, theft protection kit). Safety advice: All electrical connections must be made by a qualified person.. Caution, risk of electric shock..

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 55 W 6300 lm 115 lm/W 3000 K 80
DAMP PROOF COMPACT GEN 1 1500 55W/3000K IP66 GR

DAMP PROOF COMPACT GEN 1 1500 55W/3000K IP66 GR

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant

Shape and measurements

Length: 1590 mm

Width: 86 mm

Height: 68 mm

Weight: 1.38 kg

Adjustability

Fixed

Design

Material impression: Plastic

Colour of housing: Anthracite / graphite

Electric

System power: 55 W

Appliance Class: II

Protection

IP: 66

IK: 08

Designation labels: CE

Other operating numbers

Ambient temperature range: -35...50°C

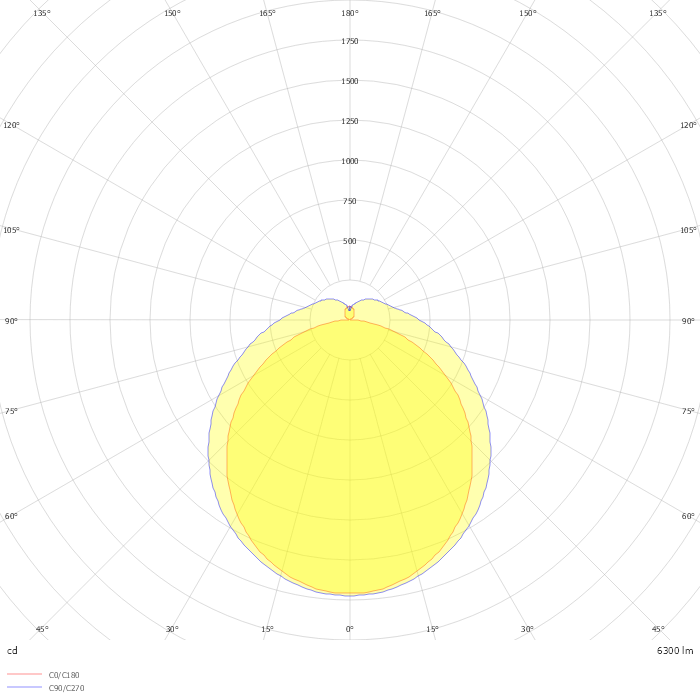

Photometric data

ZIP file
