Product data sheet
KUBIK POLE 3000 3/1/3/0 LED 1,7W ODB E IP65 22 3000K
19.3161.0111.22
LUXIONA

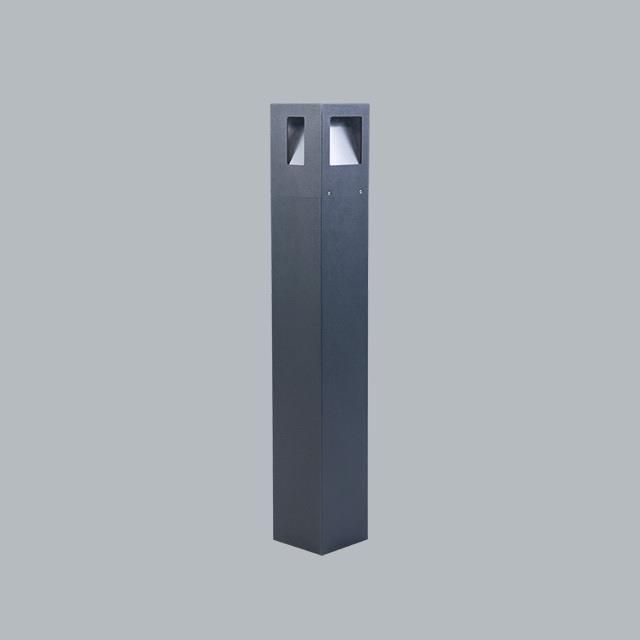

Outdoor luminaire. Assembly: for the ground. The body material is aluminum. Colour - RAL 9007 (dark gray, metallic, fine structure). Luminaire dimensions: 150 x 150 x 3000 mm. Diffuser: transparent polycarbonate. The efficiency of the optical system is 83,46%. Beam angle: asymmetric light distribution. Light source type: LED. Colour of the light 3000 K. SDCM=7. CRI>80. Lifetime of LED sources: 50000 h L70/B50. Luminaire luminous flux: 724 lm. Power of luminaire: 14 W. Luminaire's light efficiency: 51,7 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,5. Circuit load capacity: 37 (B10), 59 (B16), 61 (C10), 89 (C16). Operating temperature range: -25 ÷ 30° C. Protection degree: IP65. Impact resistant: IK09. Protection against electric shock: I.
Mounting mode
Pole integrated
Shape and measurements
Length: 150 mm
Width: 150 mm
Height: 3000 mm
Adjustability
Fixed
Design
Colour of housing: Anthracite / graphite, Silver gray
Electric
System power: 14 W
Appliance Class: I
Protection
IP: 65
IK: 09
Other operating numbers
Ambient temperature range: -25...30°C
Photometric data
ZIP file
