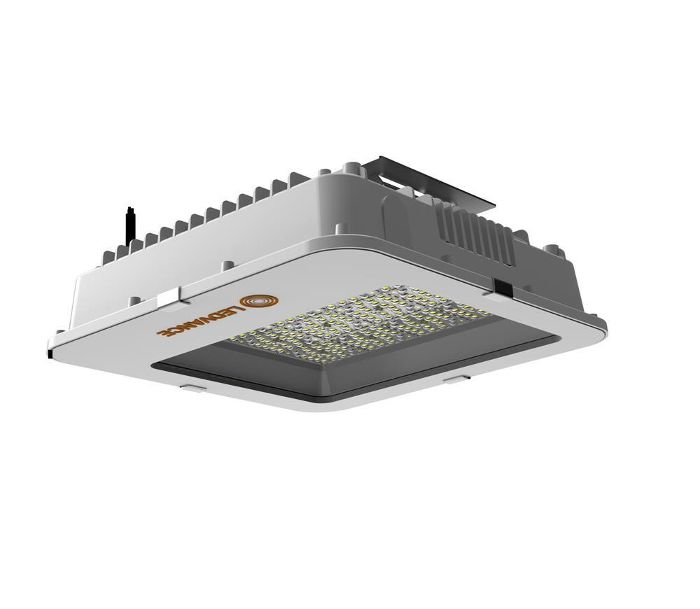

LED Value Canopy Light is a high efficient and reliable LED luminaire, designed for petrol-station canopies and low/high bay applications. Robust die cast aluminum housing provides good heat dissipation. Available in 60W, 90W and 110W. Available in surface mounting, recessed mounting and pole mounting. System efficacy 135lm/W provides high energy saving compare to conventional HID product. Beam angle: symmetric middle (90°), symmetric wide (120°), asymmetric (120°x60°). Die cast aluminum housing provides good heat dissipation. Secondary optics - tempered glass cover, helps to ensure the stability of product performance. IP66 and IK07 provide high-grade protections. Standard 4000K/ 6500K CCT. High CRI >80, SDCM<5. Long 50,000hrs lifetime reduces maintenance costs. IP safe high efficient SMD ensure system liability and legal risks free. Pre-wired with mains cable. Compliance certificates: CB, EMC, RoHS.
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 110 W | 14850 lm | 135 lm/W | 6800 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 200 mm
Width: 150 mm
Height: 10 mm
Adjustability
Fixed
Electric
System power: 110 W
Protection
IP: 66
IK: 07

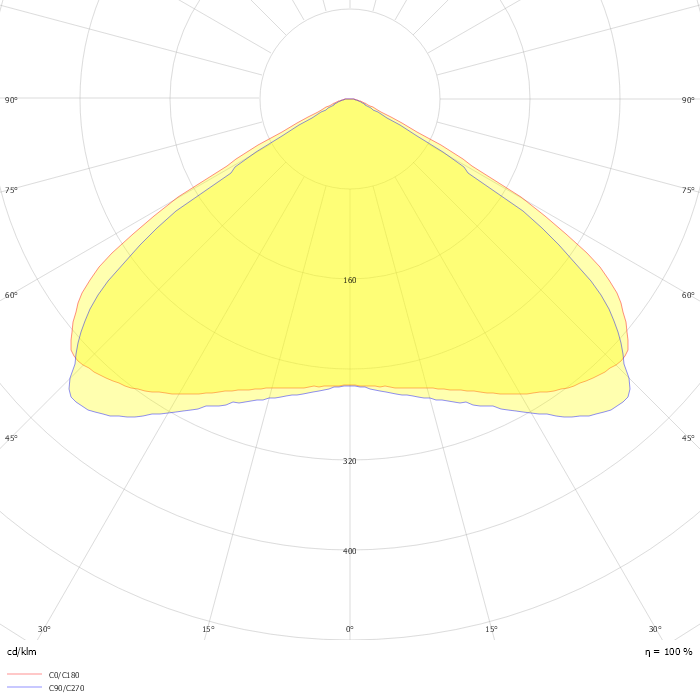

Photometric data
ZIP file
