Product data sheet

PANEL LED 60X60 32W 5200K 220V 4000LM UGR<19 NEXT C2

7100005323

CELER

Product image 1: PANEL LED 60X60 32W 5200K 220V 4000LM UGR<19 NEXT C2
Product image 1: PANEL LED 60X60 32W 5200K 220V 4000LM UGR<19 NEXT C2

Product image 1: PANEL LED 60X60 32W 5200K 220V 4000LM UGR<19 NEXT C2



IP
40

IK
05

Panel LED marca CELER modelo NEXT C2. Medidas 595x595mm. Altura 10mm. 32W. Temperatura de color 5.200K. Flujo útil 4.000 lúmenes, haz de apertura 90º. IP40. UGR<19. IRC>80. Incluye equipo de alimentación 220-240VAC.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 32 W 4000 lm 125 lm/W 5200 K 80
PANEL LED 60X60 32W 5200K 220V 4000LM UGR<19 NEXT C2

PANEL LED 60X60 32W 5200K 220V 4000LM UGR<19 NEXT C2

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 595 mm

Width: 595 mm

Height: 10 mm

Adjustability

Fixed

Design

Material impression: Plastic

Colour of housing: White

Glare protection

Glare protection: UGR < 19

Electric

System power: 32 W

Appliance Class: II

Protection

IP: 40

IK: 05

Designation labels: CE, ENEC

Other operating numbers

Ambient temperature range: -20...40°C

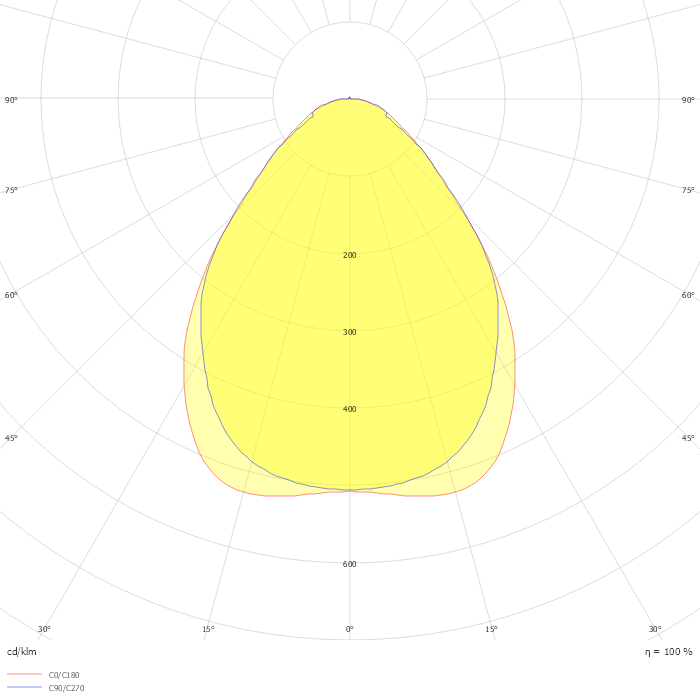

Photometric data

ZIP file

Download file
