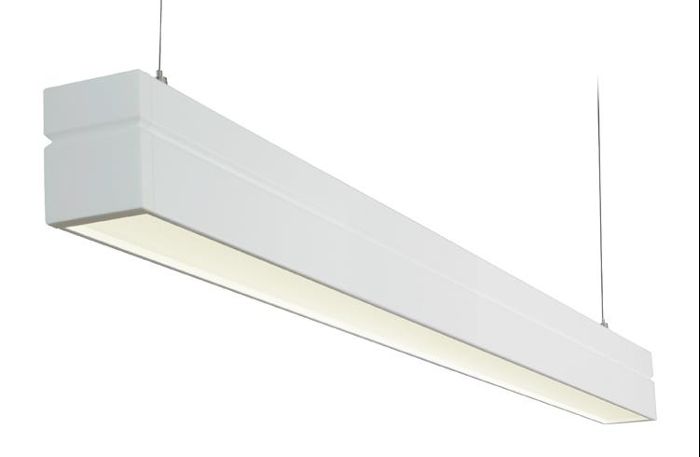

Slim, minimalistic luminaire with direct/indirect light. Perfect for offices and over desks with glare-free optic in PMMA. Delivered with 2,5 meter cable and 2x2 meter suspension wires. Quick installation with plug and play solution. Light distribution Direct/Indirect Light technic LED 34W 4000K Ra>80 SDCM 3 L80/B10 >100,000 hrs L94 >50,000 hrs Control gear DALI Emergency 3H Protection Class I IP20 Materials and finish Housing: Sheet steel Colour: White (RAL 9010, 20% gloss) Optics: Acrylic (PMMA) Mounting/Connection Suspended, Indoor 2x2m wire kit w/loop M4 Cable 5x0,75mm² 2,5m white Max. luminaires per circuit breaker: B10: 13, B16: 24, C10: 21, C16: 38
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 34 W | 4890 lm | 144 lm/W | 4000 K | 80 |
Mounting mode
Pendant
Shape and measurements
Length: 1445 mm
Width: 64 mm
Height: 120 mm
Adjustability
Fixed
Design
Colour of housing: White
Electric
System power: 34 W
Appliance Class: I
Protection
IP: 20
Photometric data
ZIP file
