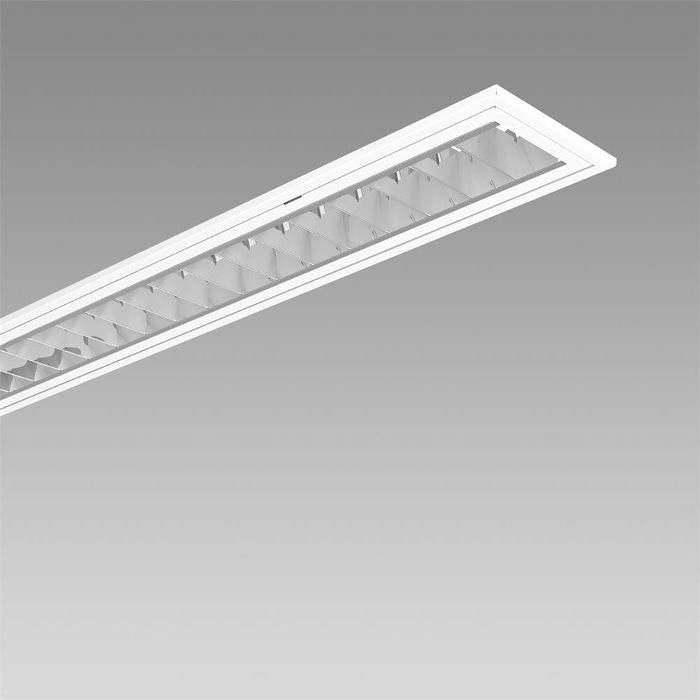

Recessed ceiling luminaire Geo 3 Office 1 lamp, with LED, system power: 30 W, standby power 0.5 W, luminous flux of luminaire 3800 lm, colour rendering index CRI > 80, colour temperature 3000 K, warm white, colour tolerances SDCM 3, lifetime LED L80 50'000 h, photobiological safety: the luminaire poses no danger (RG0), 230 V, direct light emission, housing in steel sheet white powder coated, specular louvre in aluminium brillant polished, 1 integral control gear, DALI, Regent certified MINERGIE®-Modul luminaires S.A.F.E. 2019 (Re-0315), luminaire complies with the strict requirements for Minergie-certified luminaires protection class I, ingress protection IP20 / IP40, glow wire test 850 °C, impact strength: IK 07 this product contains a light source of energy efficiency class D and EPREL registration number: 992206 L = 1496 mm, B = 115 mm, EL = 1486 mm, EB = 100 mm, ET = 100 mm
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 28 W | 3800 lm | 136 lm/W | 3000 K | 80 |
Mounting mode
Ceiling recessed
Shape and measurements
Length: 1546 mm
Width: 115 mm
Height: 74 mm
Adjustability
Fixed
Design
Colour of housing: White
Electric
System power: 30 W
Appliance Class: I
Protection
IP: 40
IK: 07

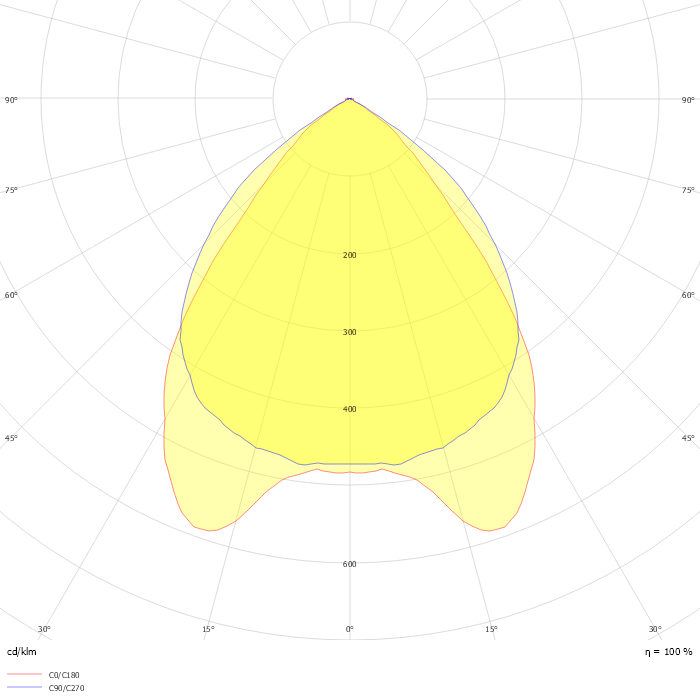

Photometric data
ZIP file
