Product data sheet

Themis L165 - adjustable with lens 4000K CRI 85 24W CLD-D-D Grey

22071370-6841

Disano

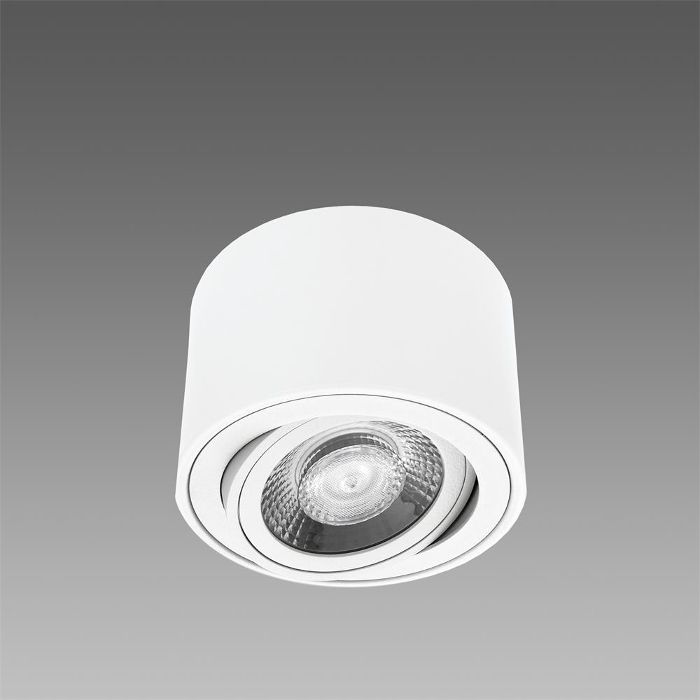

Product image 1: Themis L165 - adjustable with lens 4000K CRI 85 24W CLD-D-D Grey
Product image 1: Themis L165 - adjustable with lens 4000K CRI 85 24W CLD-D-D Grey

Product image 1: Themis L165 - adjustable with lens 4000K CRI 85 24W CLD-D-D Grey



IP
20

IK
07

Housing: in die-cast aluminium. Optics: high-efficiency faceted lens with a very low glare coefficient. Diffuser: in polycarbonate, shatterproof and self-extinguishing, UV stablised. : UGR<lt/>19, according to standard EN 12464. Coating: epoxy polyester powder coating resistant to UV rays. LED: 80%: 50000h (L80B20) Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Equipment: bracket for direct ceiling mounting.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 24 W 2626 lm 109 lm/W 4000 K 85
Themis L165 - adjustable with lens 4000K CRI 85 24W CLD-D-D Grey

Themis L165 - adjustable with lens 4000K CRI 85 24W CLD-D-D Grey

Light output 1

1 x LED

Mounting mode

Pendant

Shape and measurements

Height: 120 mm

Diameter: 165 mm

Adjustability

Fixed

Design

Material impression: Aluminum

Electric

System power: 24 W

Appliance Class: I

Protection

IP: 20

IK: 07

Designation labels: CE

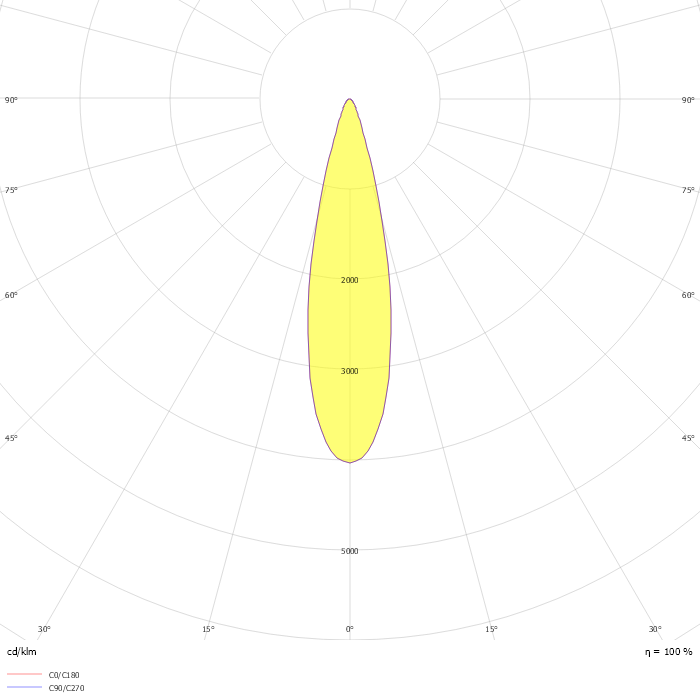

Photometric data

ZIP file

Download file
