• Safety luminaire from high quality, UV-resistant, halogen-free plastic with LED-technology • Modular constructed luminaire series permits combination with various fixing modules • Special LED optical arrangement for efficient illumination of exit routes, suitable for mounting heights up to 6 m, maximum distance from luminaire to luminaire: > 16 m from 3 m mounting height and > 20 m from 4.5 m mounting height • Minimum service requirement due to high service life of the LEDs (up to 50,000 hours) • Simple mounting via quick mounting set (can be pre-assembled) with plug-in connectors for through-wiring • Optionally available IP54 set (for electronic and light source) for increased sealing requirements for indoor rooms or for canopied outdoor areas • Shortened inspection effort due to CEWA GUARD technology • Automatic function monitoring of up to 20 luminaires per circuit • Reduced installation expenditures by STAR technology • Freely programmable mixed operation of the switching modes per luminaire in one circuit
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 4.4 W | 107 lm | 24 lm/W | 6500 K | 70 |
Mounting mode
Ceiling mounted, Wall mounted
Shape and measurements
Length: 340 mm
Width: 197 mm
Height: 60 mm
Adjustability
Fixed
Design
Colour of housing: Silver gray
Electric
System power: 4.4 W
Suitable for feed-through wiring
Appliance Class: II
Information regarding emergency functions
Emergency lighting only
Emergency power supply: Central battery feed-in
Emergency sign: N/A
Protection
IP: 41
IK: 03

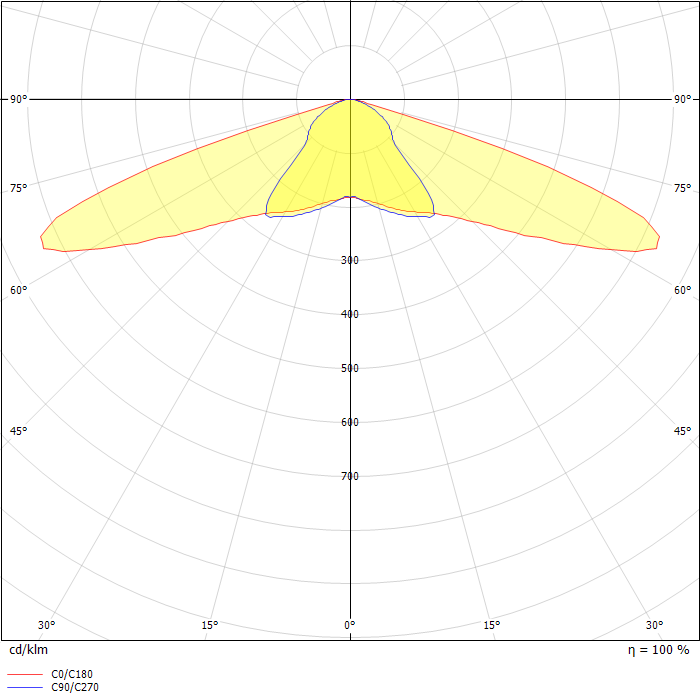

Photometric data
ZIP file
