Product data sheet

Circular Downward ø600 Surface

CS4A-00W9AZDU05

LedsC4

Product image 1: Circular Downward ø600 Surface
Product image 1: Circular Downward ø600 Surface

Product image 1: Circular Downward ø600 Surface



IP
20

LedsC4 Circular Downward ø600 Surface CS4A-00W9AZDU05V1 Pendant for indoor use. For downlighting. Structure finish: Black. Diffuser material: Polycarbonate. Diffuser finish: Opal. Warranty: 5 Years. Product net weight (Kg): 3.4 Product width or diameter (mm): 622 Product height (mm): 3000 Class 1. IP: IP20. LED. No. of lampholders or LEDs: 1. Driver brand: MEAN WELL. Maximum power of light source: 30W. Colour temperature: 3000K. Colour rendering index: 90. MacAdam Steps: 3. Hours of life: 50.000h L80B20. UGR: 16.4. Photobiological risk: RG1. Real flux (lm): 2318. Real lm/W: 70. Voltage / frequency range: 90-305/50-60Hz. Voltage: 2,8. Equipment included: No. Total power: 33. Power factor: 0.90. Dimmable equipment included: DALI-2.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 33 W 2318 lm 70 lm/W 3000 K 90
Circular Downward ø600 Surface

Circular Downward ø600 Surface

Light output 1

1 x LED

Mounting mode

Pendant, Table luminaire

Shape and measurements

Length: 600 mm

Width: 600 mm

Height: 45 mm

Adjustability

Fixed

Electric

System power: 33 W

Appliance Class: I

Protection

IP: 20

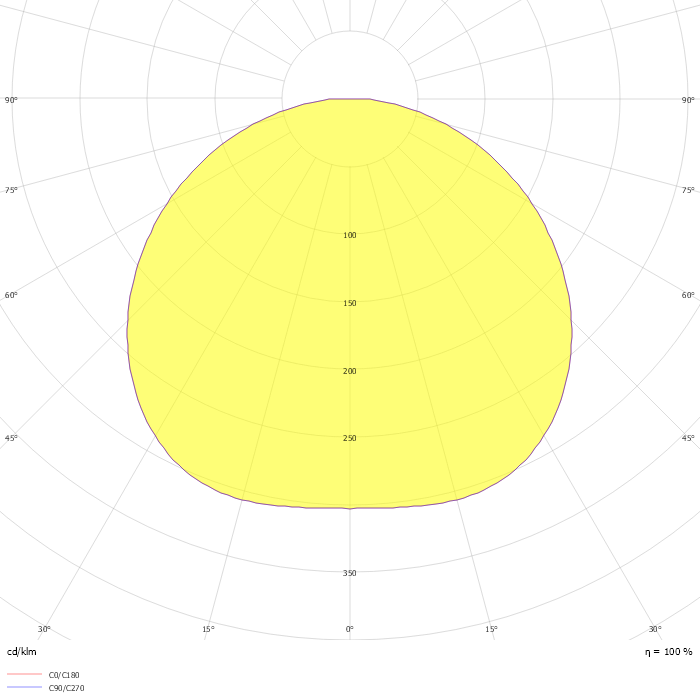

Photometric data

ZIP file

Download file
