Product data sheet

LDPFM HB DALI 100W 865  G4 VS1 EN LEDV

4058075788725

LEDVANCE

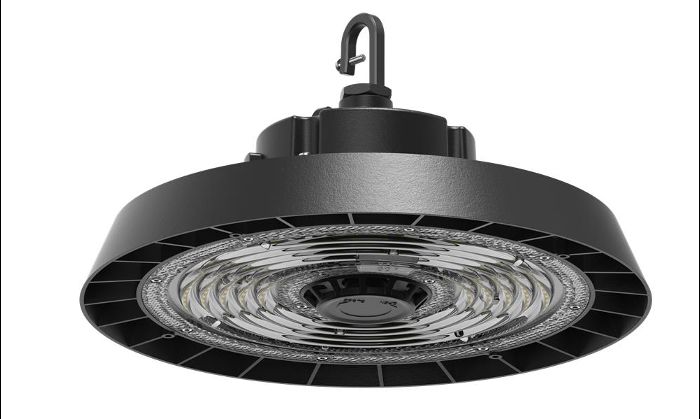

Product image 1: LDPFM HB DALI 100W 865  G4 VS1 EN LEDV
Product image 1: LDPFM HB DALI 100W 865  G4 VS1 EN LEDV

Product image 1: LDPFM HB DALI 100W 865  G4 VS1 EN LEDV



IP
65

IK
08

Available in100W,150W and 200W. 100-277V AC input. Comply with DALI 2.0. Standard CCT: Standard 6500K and 4000K. High color rendering: CRI ≥ 80. High power factor: PF≥0.90. 160lm/w, 100,000hrs lifespan @25℃. IP65, IK08 protection. Pre-wired with 500mm cable. Energy saving thanks to 160lm/w system efficacy. Die-cast housing, UV resistant PC lens offer a durable service. Long 100,000hrs lifetime reduces maintenance costs. Safety compliance certificates: CB, EMC RoHS 2.0.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 100 W 16000 lm 160 lm/W 6800 K 80
LDPFM HB DALI 100W 865  G4 VS1 EN LEDV

LDPFM HB DALI 100W 865  G4 VS1 EN LEDV

Light output 1

1 x LED

Mounting mode

Pendant

Shape and measurements

Length: 223 mm

Width: 223 mm

Height: 10 mm

Adjustability

Height adjustable

Electric

System power: 100 W

Protection

IP: 65

IK: 08

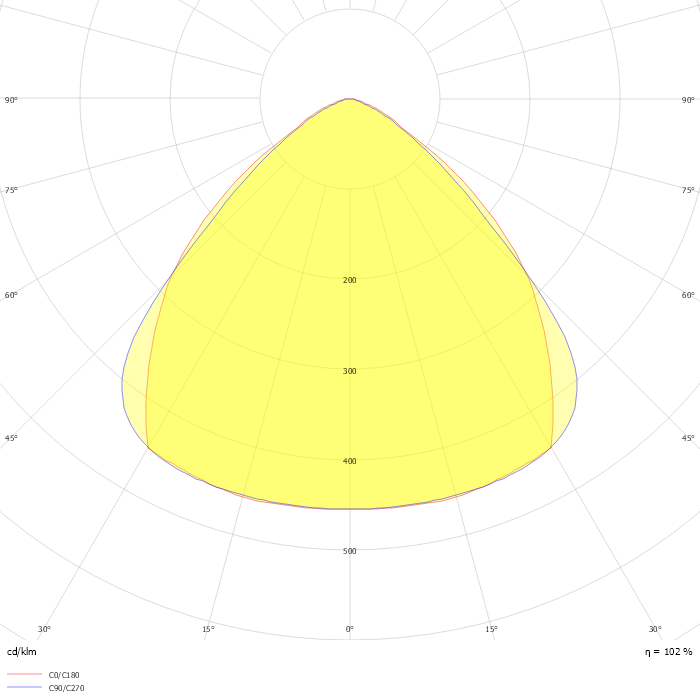

Photometric data

ZIP file

Download file
