Product data sheet
NIME TRIMLESS 930
26411 9300
Delta Light
Luminaire, ceiling recessed (indoor use) from Deltalight, named NIME TRIMLESS 930, available in the colour(s): primer. For recessed mounting, a round opening (for installing a custom mounting kit) is needed and a min. depth for recessing of 150 mm. This luminaire is equipped with LED array 3,9-10,7W / CRI>90 (R9: 55) / 3000K / 385-814lm with an optional driver, suitable for currents of 350mA to 900mA. Light distributor: lens 20-50°.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 6 W | 519 lm | 86 lm/W | 3000 K | 90 |
| 1 x LED | 5 W | 480 lm | 96 lm/W | 3000 K | 90 |
| 1 x LED | 4 W | 385 lm | 96 lm/W | 3000 K | 90 |
| 1 x LED | 4 W | 385 lm | 96 lm/W | 3000 K | 90 |
| 1 x LED | 11 W | 814 lm | 74 lm/W | 3000 K | 90 |
| 1 x LED | 8 W | 677 lm | 85 lm/W | 3000 K | 90 |
| 1 x LED | 6 W | 519 lm | 86 lm/W | 3000 K | 90 |
| 1 x LED | 5 W | 480 lm | 96 lm/W | 3000 K | 90 |
| 1 x LED | 11 W | 814 lm | 74 lm/W | 3000 K | 90 |
| 1 x LED | 8 W | 677 lm | 85 lm/W | 3000 K | 90 |
| 1 x LED | 6 W | 519 lm | 86 lm/W | 3000 K | 90 |
| 1 x LED | 5 W | 480 lm | 96 lm/W | 3000 K | 90 |
| 1 x LED | 4 W | 385 lm | 96 lm/W | 3000 K | 90 |
| 1 x LED | 11 W | 814 lm | 74 lm/W | 3000 K | 90 |
| 1 x LED | 8 W | 677 lm | 85 lm/W | 3000 K | 90 |
Mounting mode
Ceiling recessed
Shape and measurements
Height: 1 mm
Diameter: 11 mm
Weight: 0.5 kg
Electric
System power: 4-11 W
Appliance Class: II
Protection
IP: 20
Designation labels: CE

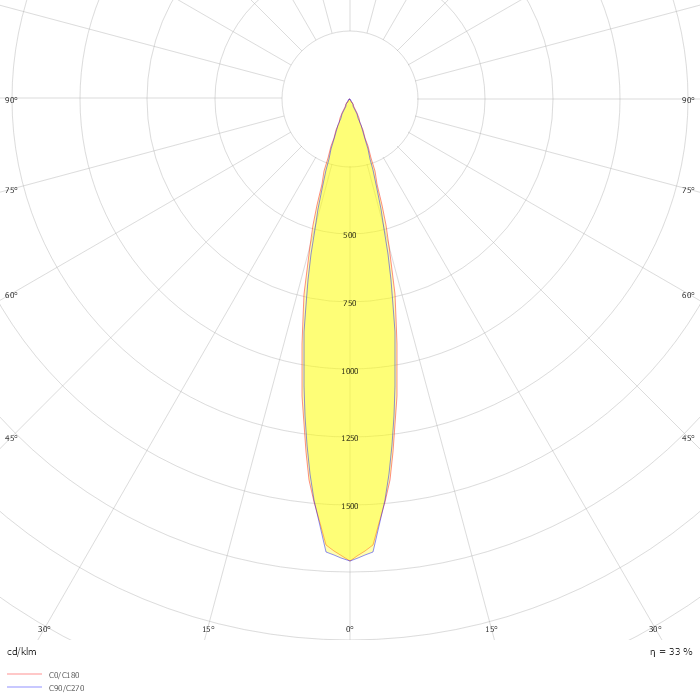

Photometric data
ZIP file
