Product data sheet

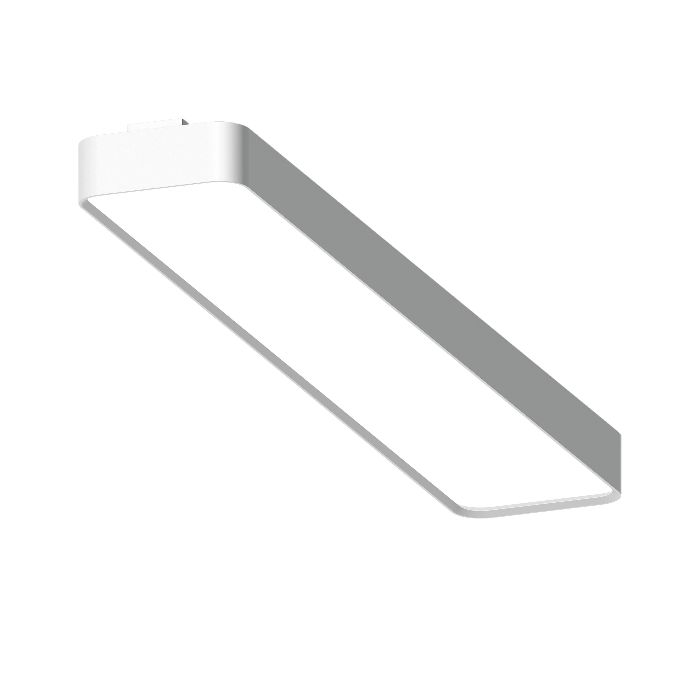

Pittsfield 3 Surface ceiling luminaires

PIT-80202-O-W40

LIGMAN

- Lamp LED - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour Temperature 3000K ,4000K - Diffuser for light output control O – Opal diffuser UGR <19 P – Micro-prismatic UGR <13 Modern design square shaped surface, recessed and pendant mounted ceiling luminaires with symmetrical up and down lighting for general or specialized lighting requirements. Lighting control system. - Wireless control employing the Bluetooth® 4.0 protocol controlled via Ligman’s mobile App or physical control via xPress switch - Daylight and occupancy sensor options Extruded aluminium profile with 316 grade stainless steel fasteners. Opal or Micro-prismatic PMMA diffuser options for glare control. Built-in driver. Passive thermal management. Surface ceiling mountings with the use of steel support and screws. Pendant mounting with the application of adjustable steel suspension (1m) complete with electrical wires in white. Applications: private residences, offices schools and universities, retail, showrooms, galleries, museums, conference halls, meeting rooms, banks, bars, restaurants, hotel and similar installations

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 31.8 W 3770 lm 119 lm/W 4032 K 80
Pittsfield 3 Surface ceiling luminaires

Pittsfield 3 Surface ceiling luminaires

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 720 mm

Width: 213 mm

Height: 115 mm

Weight: 4.2 kg

Adjustability

Fixed

Design

Colour of housing: Black, White, Silver gray

Glare protection

Glare protection: UGR < 19

Electric

System power: 31.8 W

Voltage: 230 V AC

Ballast: ECG

Controller: Dimmable 1..10V, DALI

Appliance Class: I

Integrated sensors

Integrated sensors: Daylight sensor, Motion sensor, Presence sensor

Protection

IP: 20

Surface temperature: 40°C

Designation labels: CE, ENEC, UL

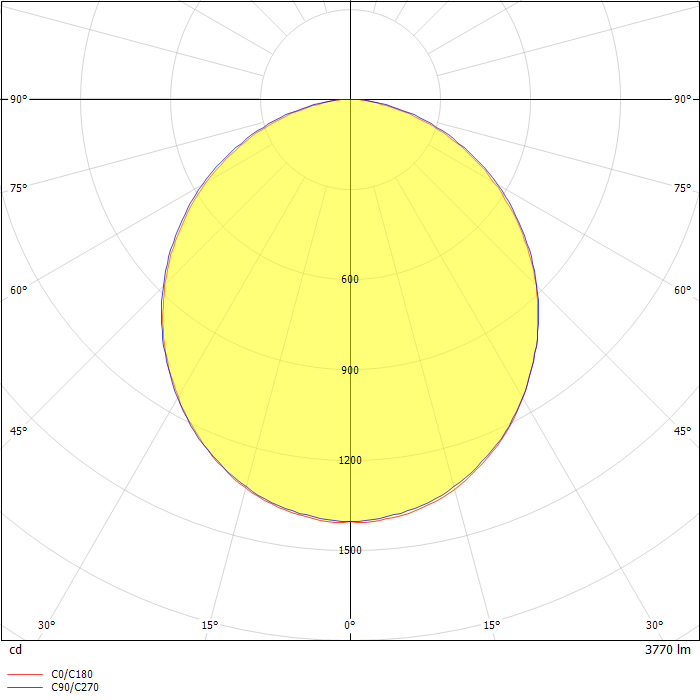

Photometric data

ZIP file
