Product data sheet

D-LINER 30 SBL 30BD 13 930 DIM5

29222 9305

Delta Light

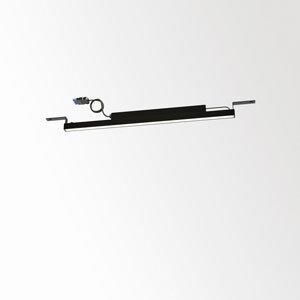

Product image 1: D-LINER 30 SBL 30BD 13 930 DIM5
Product image 1: D-LINER 30 SBL 30BD 13 930 DIM5

Product image 1: D-LINER 30 SBL 30BD 13 930 DIM5



IP
20

Luminaire, ceiling recessed (indoor use) from Deltalight, named D-LINER 30 SBL 30BD 13 930 DIM5, available in the colour(s): black, white. This luminaire is equipped with LED flex 45W / CRI>90 (R9: 57) / 3000K / 5687lm with build-in dimmable driver to operate on a voltage of 220-240V / 0|50-60Hz. Dimming protocol: DALI. Light distributor: opal diffuser.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 52 W 5687 lm 109 lm/W 3000 K 90
1 x LED 52 W 5687 lm 109 lm/W 3000 K 90
D-LINER 30 SBL 30BD 13 930 DIM5

D-LINER 30 SBL 30BD 13 930 DIM5

Light output 1

1 x LED

D-LINER 30 SBL 30BD 13 930 DIM5

D-LINER 30 SBL 30BD 13 930 DIM5

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 1390 mm

Width: 30 mm

Height: 30 mm

Weight: 1.6 kg

Electric

System power: 52 W

Appliance Class: 0

Protection

IP: 20

Designation labels: CE

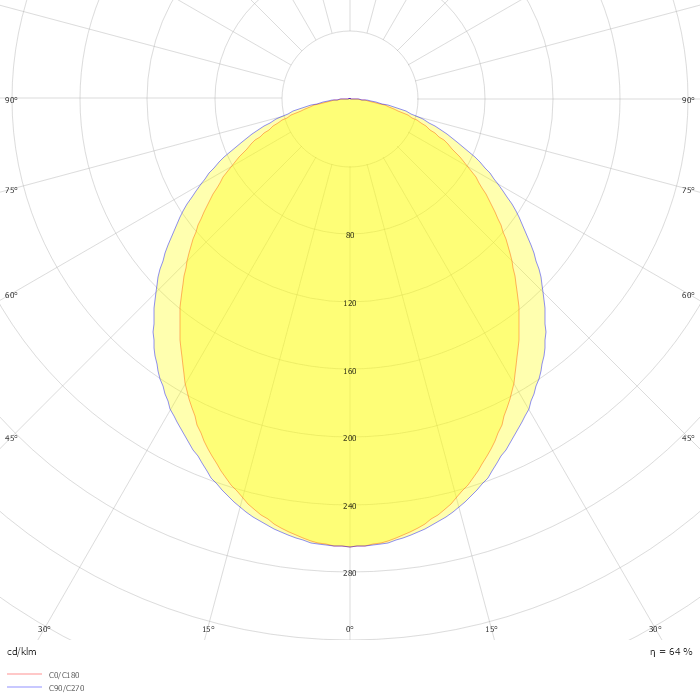

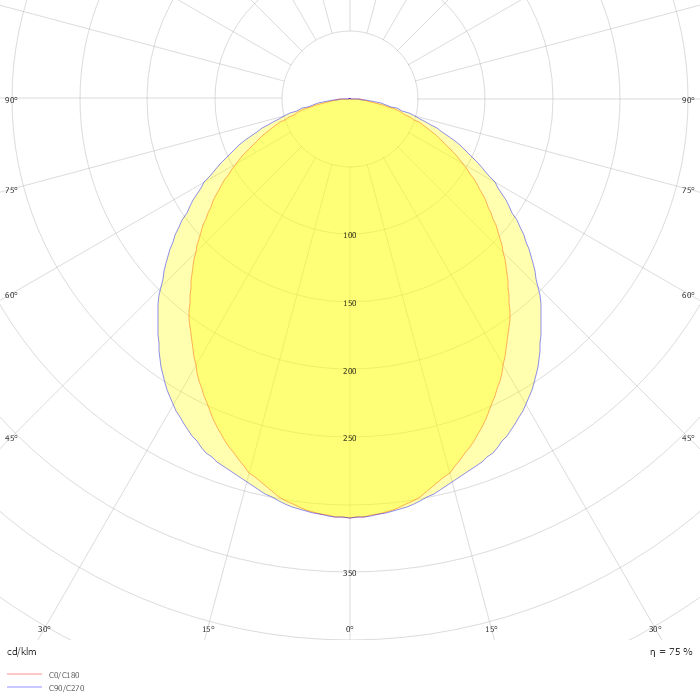

Photometric data

ZIP file

Download file
