Product data sheet

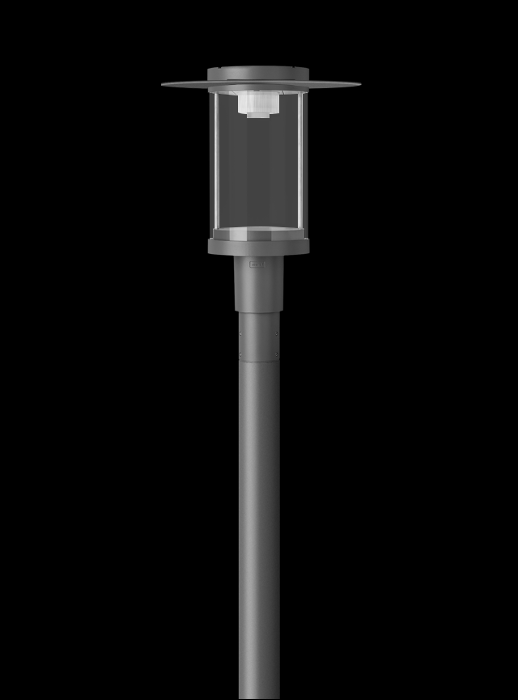

ZAT470 [C50] IP66:LED-FT-37W/4K

115-1759

we-ef

IP66, Class I. IK09. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. PMMA main lens. Integral EC electronic converter in thermally separated compartment. CAD-optimised indirect optics for superior illumination and glare control. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during installation. Recommended mounting height 3.0 - 6.0 m.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 37 W 6695 lm 110 lm/W 4000 K 80
ZAT470 [C50] IP66:LED-FT-37W/4K

ZAT470 [C50] IP66:LED-FT-37W/4K

Light output 1

1 x LED

Mounting mode

Pole top mounted

Shape and measurements

Height: 608 mm

Diameter: 250 mm

Weight: 9.9 kg

Electric

System power: 42 W

Appliance Class: I

Protection

IP: 66

IK: 09

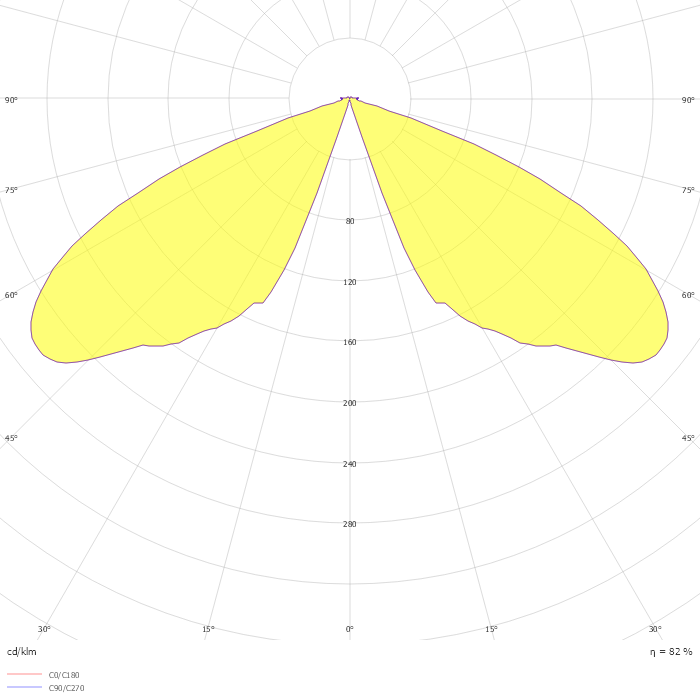

Photometric data

ZIP file
