Product data sheet

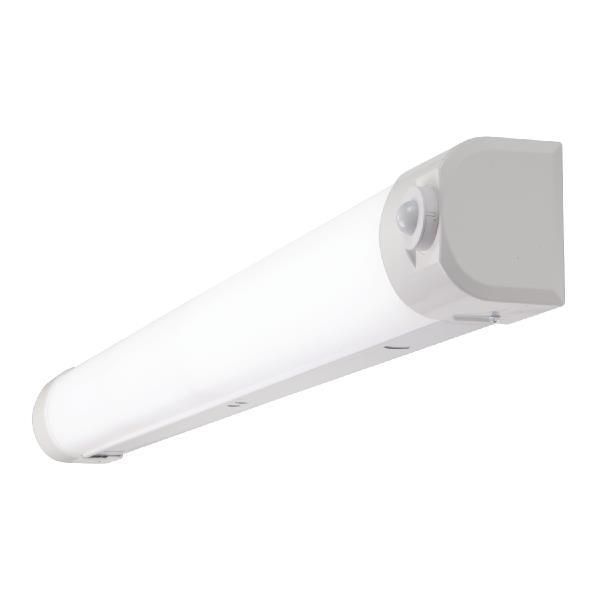

SWLED Series

2SWLED-24HL-LW-UNV-L840-CD1-U

Cooper Lighting

Lumen packages up to 2000 lumens per foot for high mounting locations, Excellent performance with lm/W, ranging up to 150 lm/W with LC lens, 4ft. and 2ft. product configurations for mounting versatility, Multiple sensor options for connected or control at multiple heights, Standard 0-10V driver with optional DALI, 1% and step dimming options, Available with 80 Cri and three CCT: 3500K, 4000K, 5000K, Ideal for surface, suspended and wall applications, Polymer end caps and thick acrylic lens withstands rugged environments

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 24 W 2475 lm 103 lm/W 4000 K 80
SWLED Series

SWLED Series

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 114 mm

Width: 610 mm

Height: 44 mm

Adjustability

Fixed

Electric

System power: 24 W

Protection

IP: 47

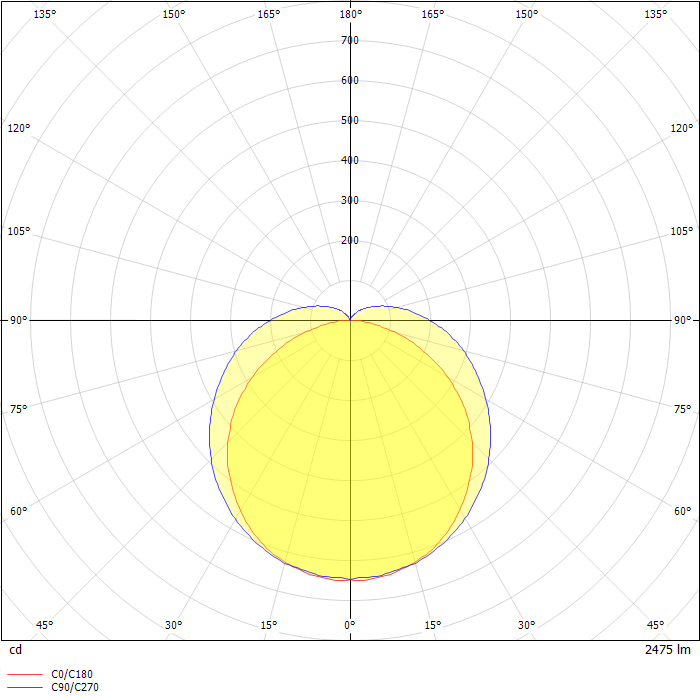

Photometric data

ZIP file
