Product data sheet

LED Downlight DLB 5W 3000K

DLB-5V

MPE

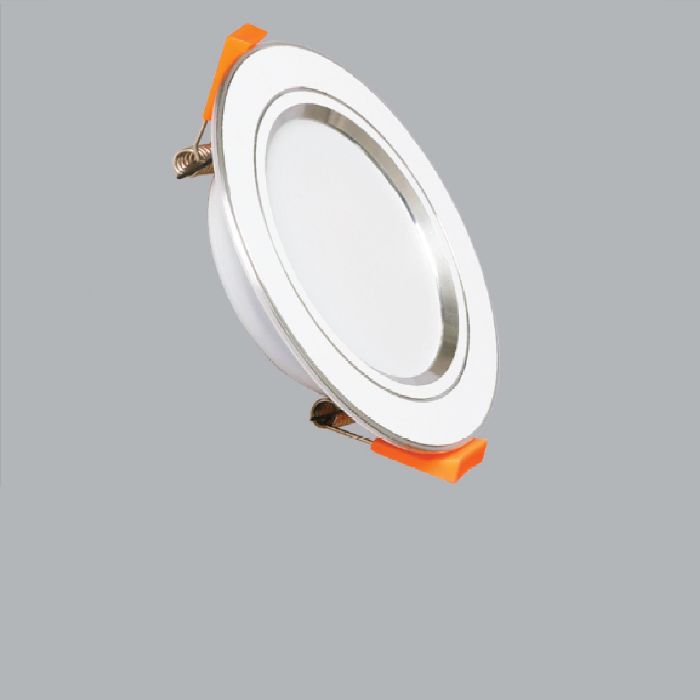

Product image 1: LED Downlight DLB 5W 3000K
Product image 1: LED Downlight DLB 5W 3000K

Product image 1: LED Downlight DLB 5W 3000K



IP
20

- Round shape - Recessed - mounted on ceiling - The lamp is cast aluminum monolithic, powder coated for fast heat dissipation - Detachable driver for easy connection - Lamp with silver rim - Size: Ø110 x 35 mm - Cut out: Ø74mm - Voltage: 100-240VAC - Power: 5W - Power Factor (PF): >0.5 - Luminance: 550 lm - Color Temperature (CCT): 2800-3200K - RA >80 High Color Rendering Index - Beam angle: 110◦ - Chip LED: SMD 2835 - Life Time: 30,000 hours - Instant Light: 0s - European Standard CE – RoHS

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 5 W 550 lm 106 lm/W 3000 K 82
LED Downlight DLB 5W 3000K

LED Downlight DLB 5W 3000K

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 110 mm

Width: 119 mm

Height: 35 mm

Adjustability

Fixed

Electric

System power: 5.18 W

Protection

IP: 20

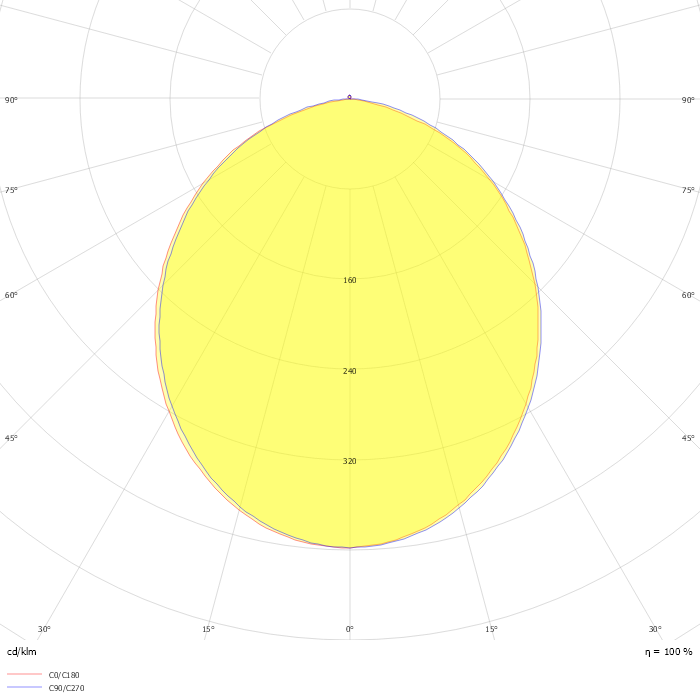

Photometric data

ZIP file

Download file
