Product data sheet

Bamboo 3 bollards

BA-10613-C-W40

LIGMAN

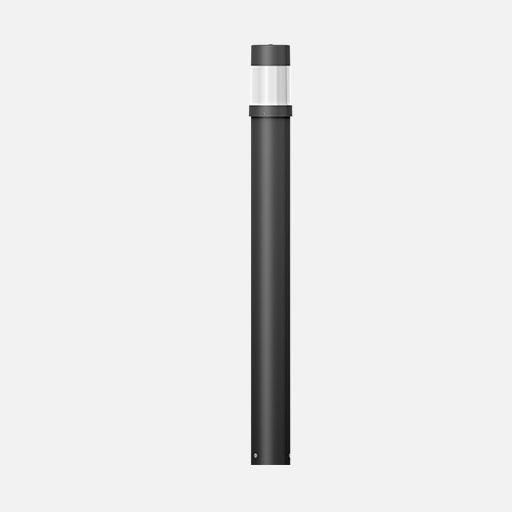

Product image 1: Bamboo 3 bollards
Product image 1: Bamboo 3 bollards

Product image 1: Bamboo 3 bollards



IP
65

IK
08

· Lamp COB · CRI Ra > 80 · MacAdam Ellipse 3 SDCM · Colour 3000K and 4000K - Die-cast aluminium housing and extruded aluminium column pre-treated before powder coating ensuring high corrosion resistance - Single cable entry - One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable - Stainless steel fasteners in grade 316 - Durable silicone rubber gasket - Clear or opal, impact-resistant, UV-stabilised polycarbonate diffuser - Integral control gear

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 14.3 W 480 lm 34 lm/W 4032 K 80
Bamboo 3 bollards

Bamboo 3 bollards

Light output 1 (integrated)

LED

Mounting mode

Standing / Bollard

Shape and measurements

Height: 665 mm

Diameter: 102 mm

Weight: 2.5 kg

Adjustability

Fixed

Design

Colour of housing: Black, White, Silver gray

Glare protection

Glare protection: UGR < 19

Electric

System power: 14.3 W

Voltage: 230 V AC

Ballast: ECG

Controller: Dimmable 1..10V, DALI

Appliance Class: I

Protection

IP: 65

IK: 08

Surface temperature: 40°C

Photometric data

ZIP file

Download file
