Product data sheet

LED MTD0700812/09-HaoRou-42W-4000K

140040647

Opple

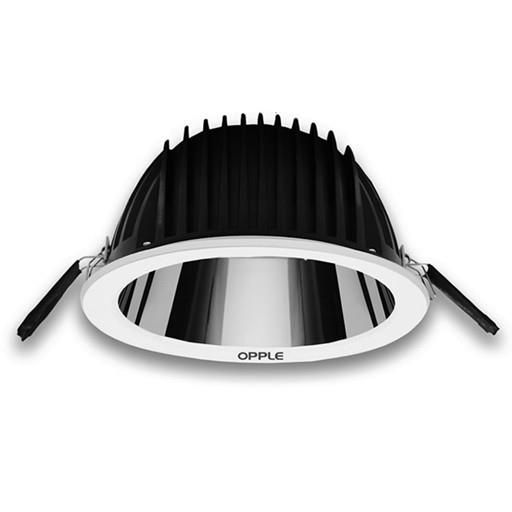

Product image 1: LED MTD0700812/09-HaoRou-42W-4000K
Product image 1: LED MTD0700812/09-HaoRou-42W-4000K

Product image 1: LED MTD0700812/09-HaoRou-42W-4000K



IP
20

Housing:corrosionresistant cast aluminium; Reflector: High quality anodised aluminium; Mounting ring: plastic, white; Installation: recessed; Dimensions:Φ220×116mm; Ceiling cutouts:Φ210mm; Power:42W; Lamp(s):LED 840; Colour temperature:4000K; Colour rendering:RA80; Total luminous flux of luminaire:3489lm Beam angle:75°; Light distribution:Lambert; Glare control:UGR<19; Service life:30,000h at 70% luminous flux; Degree of protection:IP20; Class of protection II; Mains voltage:220-240V/50-60Hz; Three fixing clips provided for tool-free installation in ceilings of thickness 5-25 mm

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 42 W 3489 lm 83 lm/W 4000 K 80
LED MTD0700812/09-HaoRou-42W-4000K

LED MTD0700812/09-HaoRou-42W-4000K

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 116 mm

Diameter: 220 mm

Adjustability

Fixed

Electric

System power: 42 W

Appliance Class: II

Protection

IP: 20

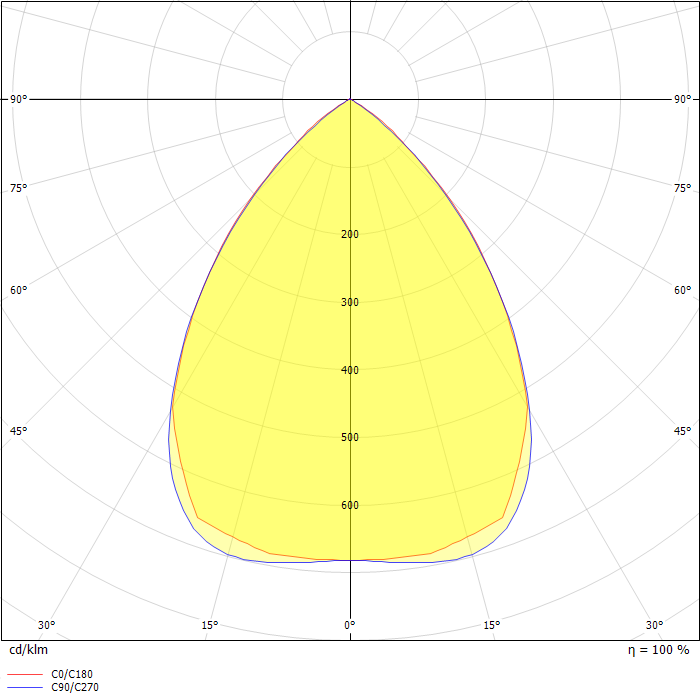

Photometric data

ZIP file

Download file
