LED light line with DALI-controllable LED converter; LED service life lasts 50000 h before luminous flux is reduced to 90% of the initial value. Chromaticity tolerance (initial MacAdam): 3. Luminaire luminous flux: 2030 lm, Luminaire efficacy: 82 lm/W. Colour rendering Ra > 80, colour temperature 3000 K. PC cover with anti-glare film for standard-compliant workstation illumination with UGR<19 and L65<3000 cd/m² (EN: 12464:2011). Luminaire of aluminium, silver powder coated. Luminaire with completely uniform appearance due to polycarbonate cover. Luminaire consists of housing and continuous optic of polycarbonate. Includes gear tray, wiring, and end-cap set. Luminaire wired with halogen-free leads and covers are due to norm classified as TP(a). Degree of protection: IP40 below (IP20 above). Dimensions: 1524 x 76 x 98 mm weight: 6.5 kg
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 24.8 W | 2030 lm | 82 lm/W | 3000 K | 80 |
Mounting mode
Pendant
Shape and measurements
Length: 1524 mm
Width: 76 mm
Height: 98 mm
Weight: 6.5 kg
Design
Material impression: Aluminum
Colour of housing: Silver gray
Electric
System power: 24.8 W
Voltage: 220-240 V AC
Controller: DALI
Appliance Class: I
Protection
IP: 40
IK: 07
Designation labels: CE, ENEC

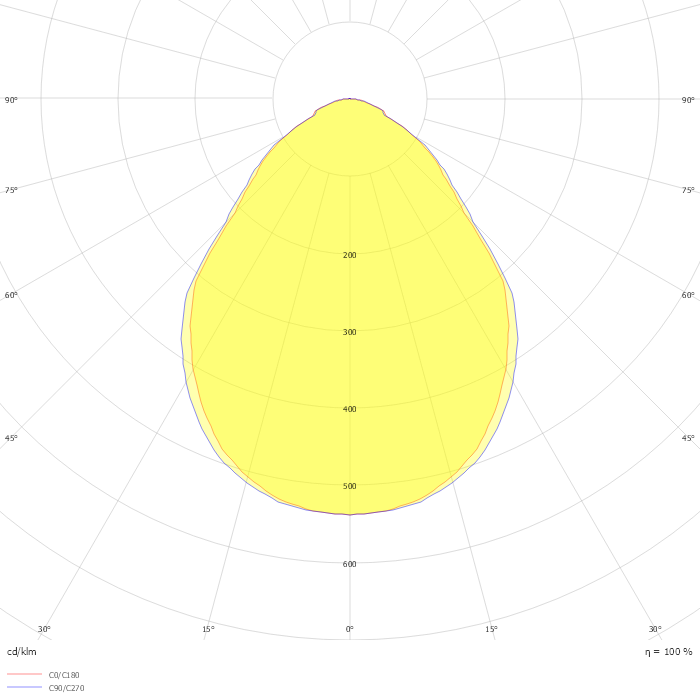

Photometric data
ZIP file
