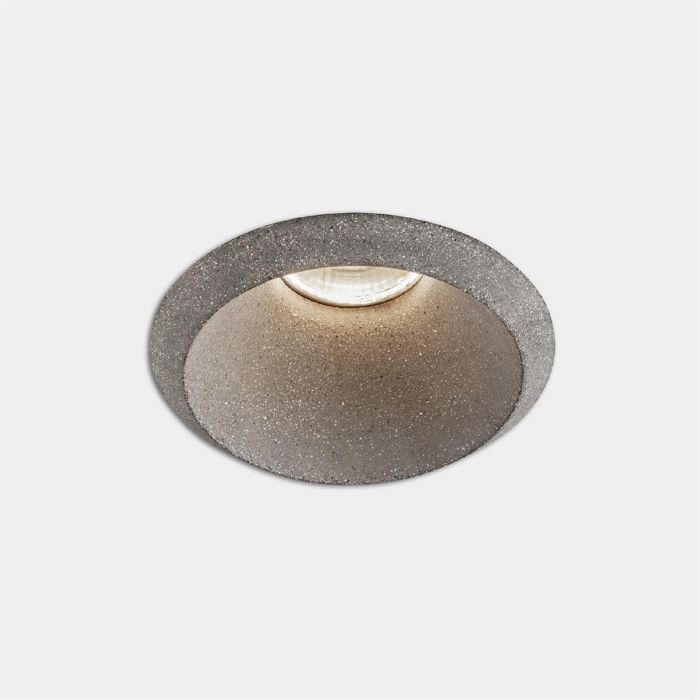

LedsC4 Play Raw Concrete AG59-12U9M2TWDC Downlight For downlighting. Structure material: Concrete. Structure finish: Cement. Warranty: 3 Years. Product net weight (Kg): 0.6 Product width or diameter (mm): 110 Product height (mm): 105 Ø of the hole for recessing (mm): 100 Permitted ceiling thickness: 0-25 Class 2. Luminaire not suitable for coating with insulation materials. IP: IP54. LED. No. of lampholders or LEDs: 1. LED brand: BRIDGELUX. Maximum power of light source: 12.5W. Colour temperature: TW 2700-6500K. Colour rendering index: 90. MacAdam Steps: 3. Hours of life: 50.000h L80B20. UGR: 15.9. Photobiological risk: RG1. Real flux (lm): 1023. Real lm/W: 71. Voltage / frequency range: 200-240/50-60Hz. Voltage: 36. Equipment included: Yes. Total power: 14.5. Power factor: 0.90. Dimmable equipment included: DALI DT8.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 14.5 W | 1023 lm | 71 lm/W | 6500 K | 90 |
1 x LED | 14.5 W | 844 lm | 58 lm/W | 2700 K | 90 |
Mounting mode
Ceiling recessed
Shape and measurements
Length: 110 mm
Width: 110 mm
Height: 2 mm
Adjustability
Fixed
Electric
System power: 14.5 W
Appliance Class: II
Protection
IP: 54

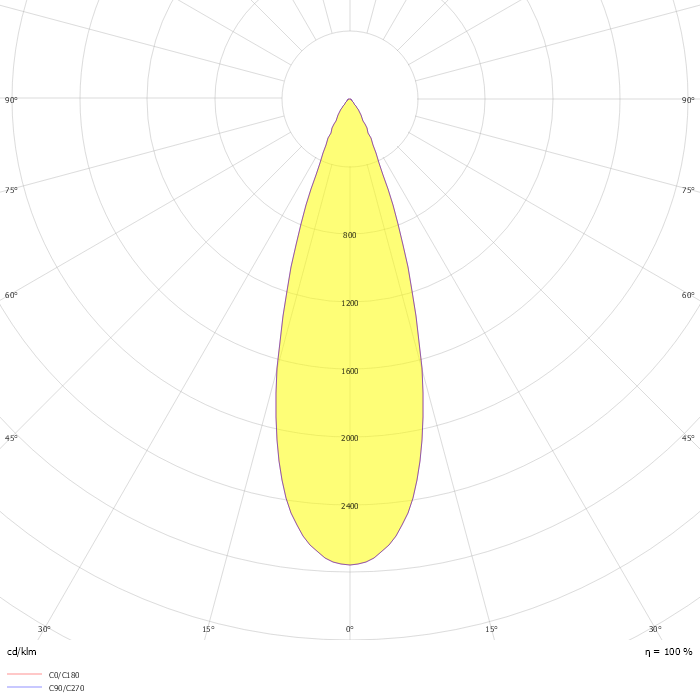

Photometric data
ZIP file
