Product data sheet

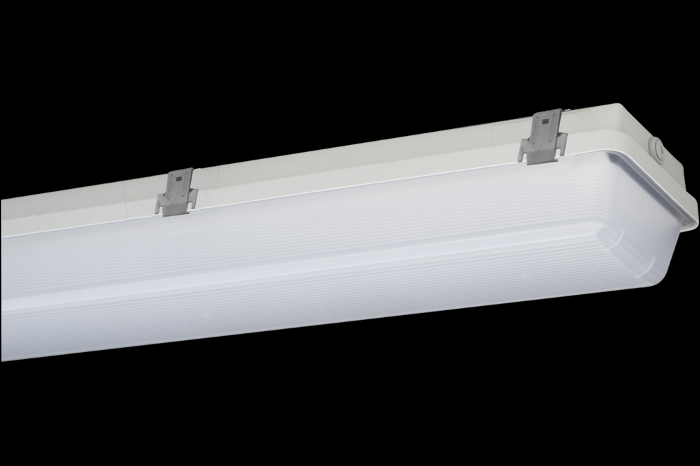

162 LED emergency light fitting

162 06L12/1 KE MA DV P6x2,5 (16218 1008)

Schuch

LED emergency light fitting, 13 W, 1580 lm, 122 lm/W, Self-contained battery, Self test, Emergency operating time 1 h, 850 lm, Class I, IP65, symmetrical wide beam, 4000 K, CRI≥ 80, Ta 0 °C/+30 °C, L70>100000 h (@ Ta max), L80>70000 h (@ Ta max), L90>50000 h (@ Ta 25°C), Diffuser PMMA satined, Closure Stainless steel (1.4571), Housing Glass fibre reinforced polyester, Colour grey, Through wiring (DV) 6x2.5 mm² PVC. Sturdy LED damp-proof emergency light fitting with self-contained battery and automatic monitoring according to EN62034. Highly impact-resistant glass fibre reinforced polyester housing and frosted diffuser with high impact resistance. Captive clips, multi-part, incl. two safety clips, silicone gasket. Powder-coated aluminium reflector with ECG, highly efficient Zhaga LED modules and LED covers (protection against contact). NiCd battery with electronic charger, short circuit protection, reverse battery protection and deep discharge protection. Automatic monitoring with optical indication of the test results. Resource-saving and environmentally friendly thanks to interchangeability of components (no disposable light fitting). Length 662,00 mm, Width/Diameter 197,00 mm, Height 125,00 mm, Net weight 3,49 kg.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 13 W 1580 lm 122 lm/W 4000 K 80
162 LED emergency light fitting

162 LED emergency light fitting

Light output 1 (integrated, emergency)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 13 W 1580 lm 122 lm/W 4000 K 80
162 LED emergency light fitting

162 LED emergency light fitting

Light output 2 (integrated)

LED

Mounting mode

Ceiling mounted, Contact rail, Wall mounted

Shape and measurements

Length: 662 mm

Width: 197 mm

Height: 125 mm

Adjustability

Fixed

Electric

System power: 26 W

Appliance Class: I

Information regarding emergency functions

Supplementary emergency lighting

Emergency sign: N/A

Protection

IP: 65

IK: 05

Designation labels: CE

Photometric data

ZIP file
