Product data sheet

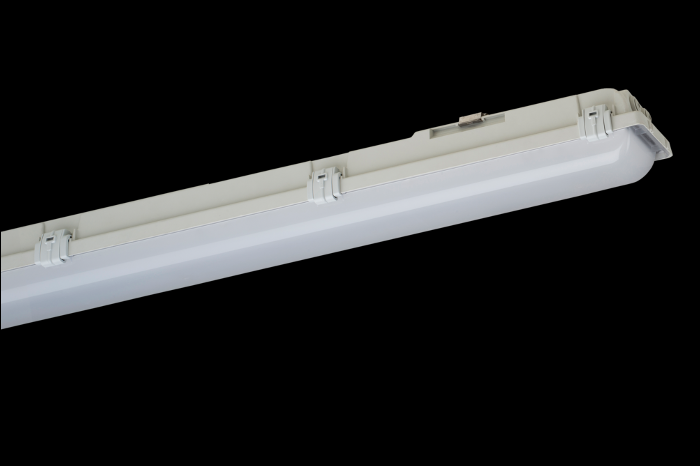

161PX PROXIMA LED damp-proof light fitting

161PX 12L42 DV (16130 1005)

Schuch

LED damp-proof light fitting, PROXIMA, 27 W, 4220 lm, 156 lm/W, Class I, IP65, symmetrical wide beam, 4000 K, CRI≥ 80, Ta -20 °C/+40 °C, L70>100000 h (@ Ta max), L80>70000 h (@ Ta max), L90>50000 h (@ Ta 25°C), Diffuser PMMA satined, Closure Plastic, Housing Glass fibre reinforced polyester, Colour grey, Through wiring (DV) 5x1.5 mm² PVC. Sturdy LED damp-proof light fitting with highly impact-resistant glass fibre reinforced polyester housing and frosted diffuser with high mechanical resistance. Captive safety clips, multi-part, silicone gasket. Powder-coated aluminium reflector with highly efficient Zhaga LED modules and ECG with overload and short circuit protection. FastFix mounting system with sliding stainless steel mounting clips and brackets for chain suspension. Length 1278,00 mm, Width/Diameter 137,00 mm, Height 115,00 mm, Net weight 3,00 kg.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 27 W 4220 lm 156 lm/W 4000 K 80
161PX PROXIMA LED damp-proof light fitting

161PX PROXIMA LED damp-proof light fitting

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant, Contact rail, Wall mounted

Shape and measurements

Length: 1278 mm

Width: 137 mm

Height: 115 mm

Adjustability

Fixed

Electric

System power: 27 W

Appliance Class: I

Protection

IP: 65

IK: 06

Designation labels: CE

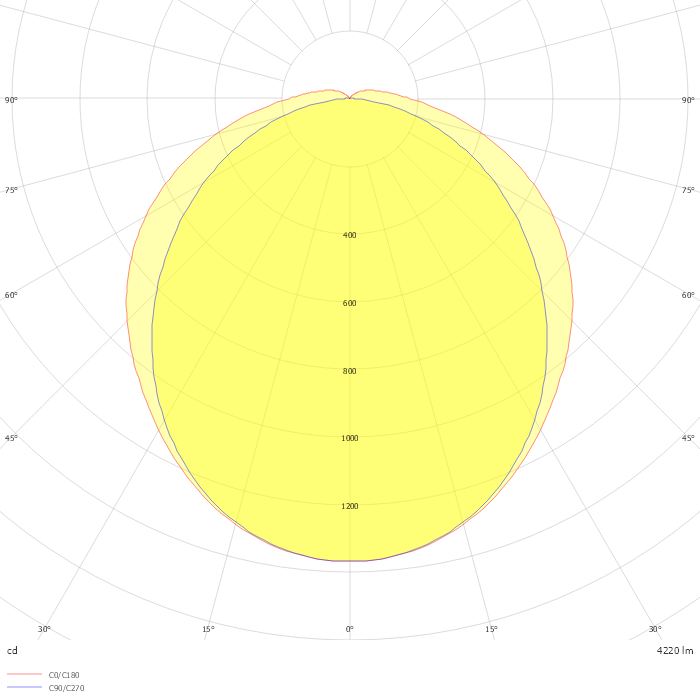

Photometric data

ZIP file
