Product data sheet

PAREO LED 3000 E IP54 850

19.3170.0001.00

LUXIONA

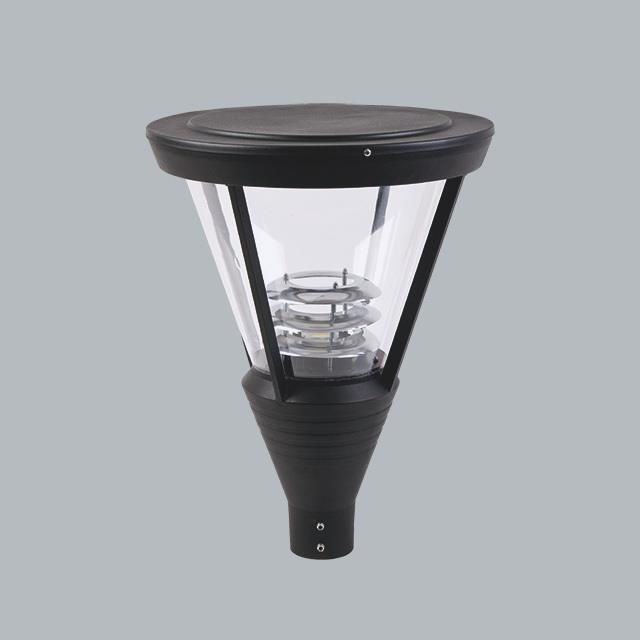

Product image 1: PAREO LED 3000 E IP54 850
Product image 1: PAREO LED 3000 E IP54 850

Product image 1: PAREO LED 3000 E IP54 850



IP
54

IK
09

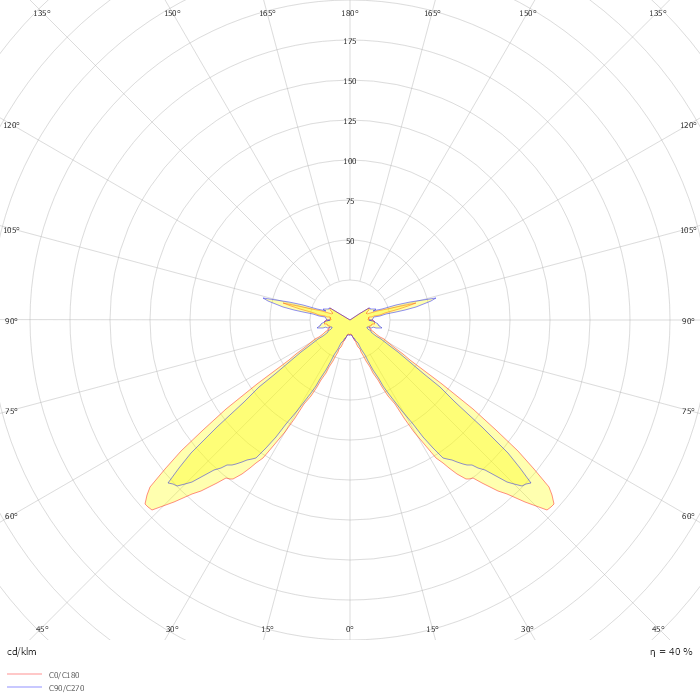

Outdoor luminaire. Assembly: mounted on poles. The body material is aluminum. Colour - black. Luminaire dimensions: Ø440 x 630 mm. Weight 5,55 kg. Diffuser: transparent polycarbonate. The efficiency of the optical system is 39,58%. Beam angle: (C0-C180) / (C90-C270) - 108,6° / 105°. Light source type: LED. Colour of the light 5000 K. SDCM=2. CRI>80. Lifetime of LED sources: 76000 h L90/B10. Luminaire luminous flux: 1584 lm. Power of luminaire: 27 W. Luminaire's light efficiency: 58,… [more]

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 27 W 4002 lm 148 lm/W 5000 K 80
PAREO LED 3000 E IP54 850

PAREO LED 3000 E IP54 850

Light output 1

1 x LED

LOR:83%
Total flux:3340 lm
Total power:27 W

Mounting mode

Pole top mounted

Shape and measurements

Height: 630 mm

Diameter: 440 mm

Adjustability

Fixed

Design

Colour of housing: Black

Electric

System power: 27 W

Appliance Class: I

Protection

IP: 54

IK: 09

Other operating numbers

Ambient temperature range: -25...30°C
