Product data sheet

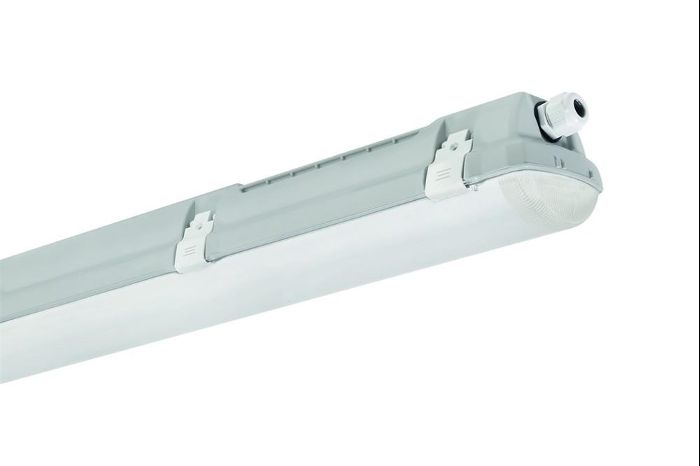

NANOTTICA 1.5ft ABS 8000/840 DALI

100755

TREVOS

absolute control over emitted light thanks to patented nano-optics; variable suspension spacing ranging from 970 - 1230 mm; enable the light to be installed onto suspension fittings left over from previous lighting; basic beam angle: medium beam (MB); optimal mounting height: 3.5 to 8 m; digitally dimmable DALI driver (AC/DC); Body: dark grey ABS (high chemical resistance, UV stability, RAL 7001); Diffuser: clear AC with nano-optics (high mechanical resistance, UV stability); Reflector: steel sheet, white (RAL 9003); Clips: polyamide + 15 % fibreglass; Sealing: polyurethane (PUR), foam-filled base groove; Connection: screwless five-pole terminal block; Power: 47,4 W; Luminaire flux: 7060 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK06; Ambient temperature: -25|45 °C; Weight: 2,1 kg;

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 47.4 W 8020 lm 169 lm/W 4000 K 80
NANOTTICA 1.5ft ABS 8000/840 DALI

NANOTTICA 1.5ft ABS 8000/840 DALI

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1455 mm

Width: 98 mm

Height: 84 mm

Adjustability

Fixed

Design

Material impression: Plastic

Colour of housing: Silver gray, White

Designer: TREVOS

Electric

System power: 47.4 W

Ballast: ECG

Controller: DALI

Appliance Class: I

Protection

IP: 66

IK: 06

Designation labels: CE, ENEC

Other operating numbers

Ambient temperature range: -25...45°C

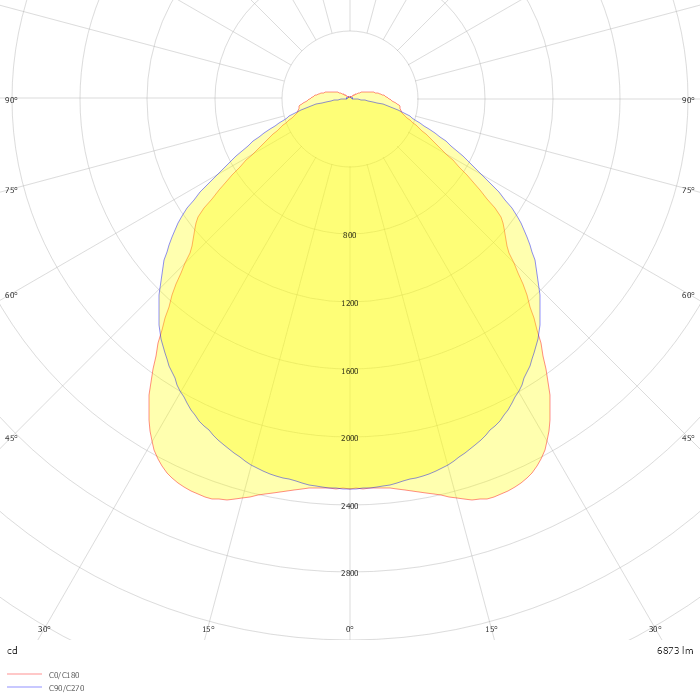

Photometric data

ZIP file
