Product data sheet

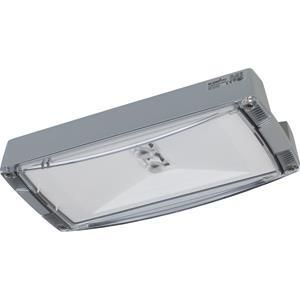

Atlantic LED LT O HB CG-S

40071354869

Eaton Emergency Lighting

• LED safety luminaire with high protection class (IP65) for indoor and outdoor use • Specialized electronics with components for reliable operation down to -40 °C • Luminaire with limited surface temperatures for use in operating areas with fire hazard • Acc. HACCP suitable for use in food processing industry • Robust construction from aluminium diecast and high impact resistant cover made of polycarbonate • Numerous knock-outs for cable entries • Suitable for mounting heights up to 28 m by narrow beam optics and exceptionally efficient High Power LEDs • Up to 14 m from luminaire to luminaire with optics for open area illumination. • Minimum service requirement due to high service life of the LEDs (up to 50,000 hours) Service life is increased at -20°C ambient temperature • Shortened inspection effort due to CEWA GUARD technology • Automatic function monitoring of up to 20 luminaires per circuit • Reduced installation cost by STAR technology • Freely programmable mixed operation of the switching modes per luminaire in one circuit • Increased safety through SLI-technology, monitoring of up to 8 individual LEDs in series connection

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 4.7 W 340 lm 72 lm/W 4000 K 80
Atlantic LED LT O HB CG-S

Atlantic LED LT O HB CG-S

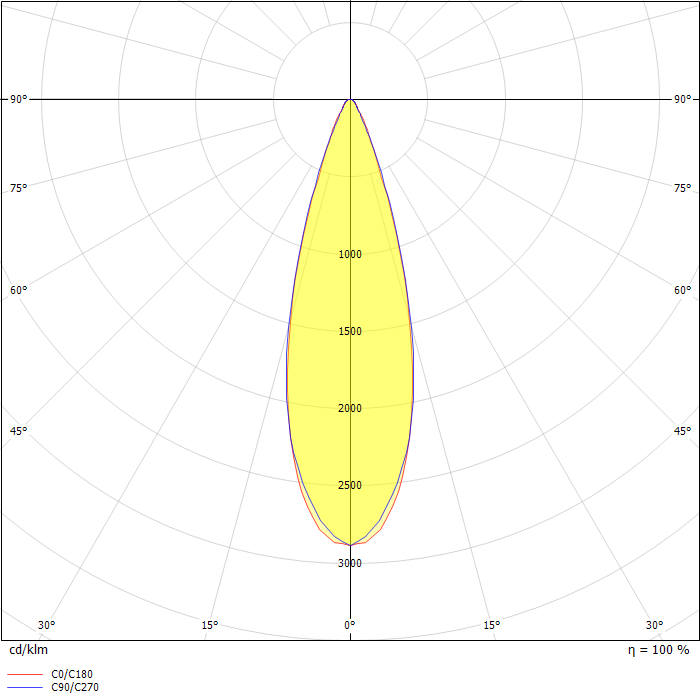

Light output 1 (integrated, emergency)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 4.7 W 340 lm 72 lm/W 4000 K 80
Atlantic LED LT O HB CG-S

Atlantic LED LT O HB CG-S

Light output 2 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 303 mm

Width: 136 mm

Height: 62 mm

Adjustability

Fixed

Electric

System power: 9.4 W

Appliance Class: I

Information regarding emergency functions

Supplementary emergency lighting

Emergency sign: N/A

Protection

IP: 65

IK: 10

Photometric data

ZIP file
